Description

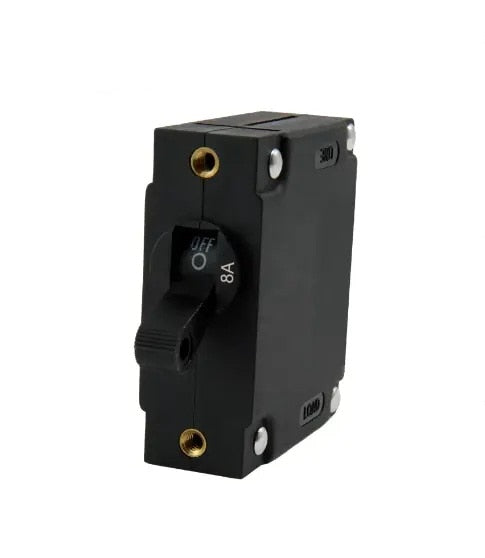

Model: 3211-08
- AC & DC Rated to cover a wide range of system application needs.
- Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
- Easily Mounts In Standard Panels accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws.
-
4 Year Warranty: We stand behind our product's ability to meet your needs.
Protects Electrical Circuits allows from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current to safely protects circuits connected to large paralleled battery banks with significant available power.
Specifications
| CONTINUOUS CURRENT (AMPS) |
8 |
| MAX VOLTAGE |
277 Vac / 80 Vdc |
| Regulatory Compliance |
UL 1077 |
| Electrical Endurance @ Rated current |
6,000 Cycles |
| Interrupt Capacity |
5kA / 277Vac, 1.5kA / 80 Vdc |
