Description

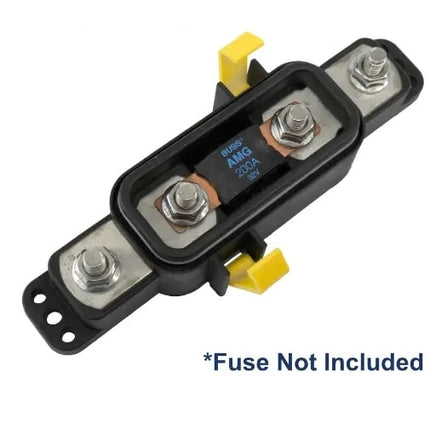

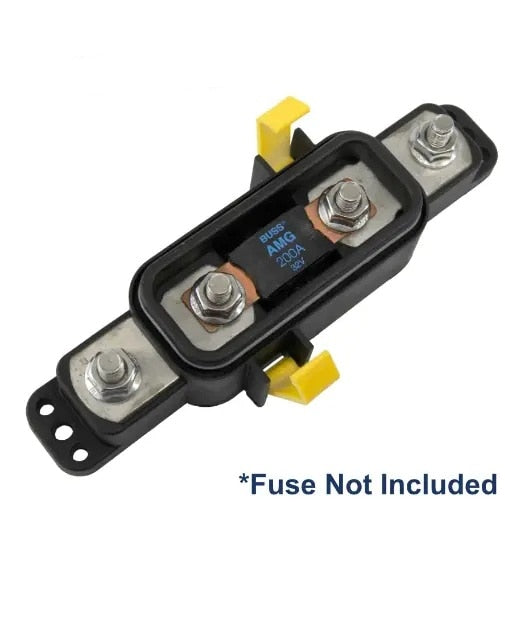

EGIS AMG/MEGA Fuse Block Sealed Retail Pack
Model: 3902
- Tin Plated Copper Busbar deliver superior electrical performance with minimal voltage drop.
- performance with minimal voltage drop.
Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
- Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
- 4 Year Warranty: We stand behind our product's ability to meet your needs.
Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, that would otherwise land on the fuse tab itself.
Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.
Specifications
| Maximum Amperage |
50-300A |
| MAX VOLTAGE |
80 Vdc |
| Ingress Protection ratings |
IP66, IP67, IP6K9K |
| Mounting holes |
4x #10 (M5) & 2x 1/4" (M6) |
| Mounting screw max torque |
50 in-lbs (5.5 N-m) |
| Busbar material |
Tin-Plated Copper |
