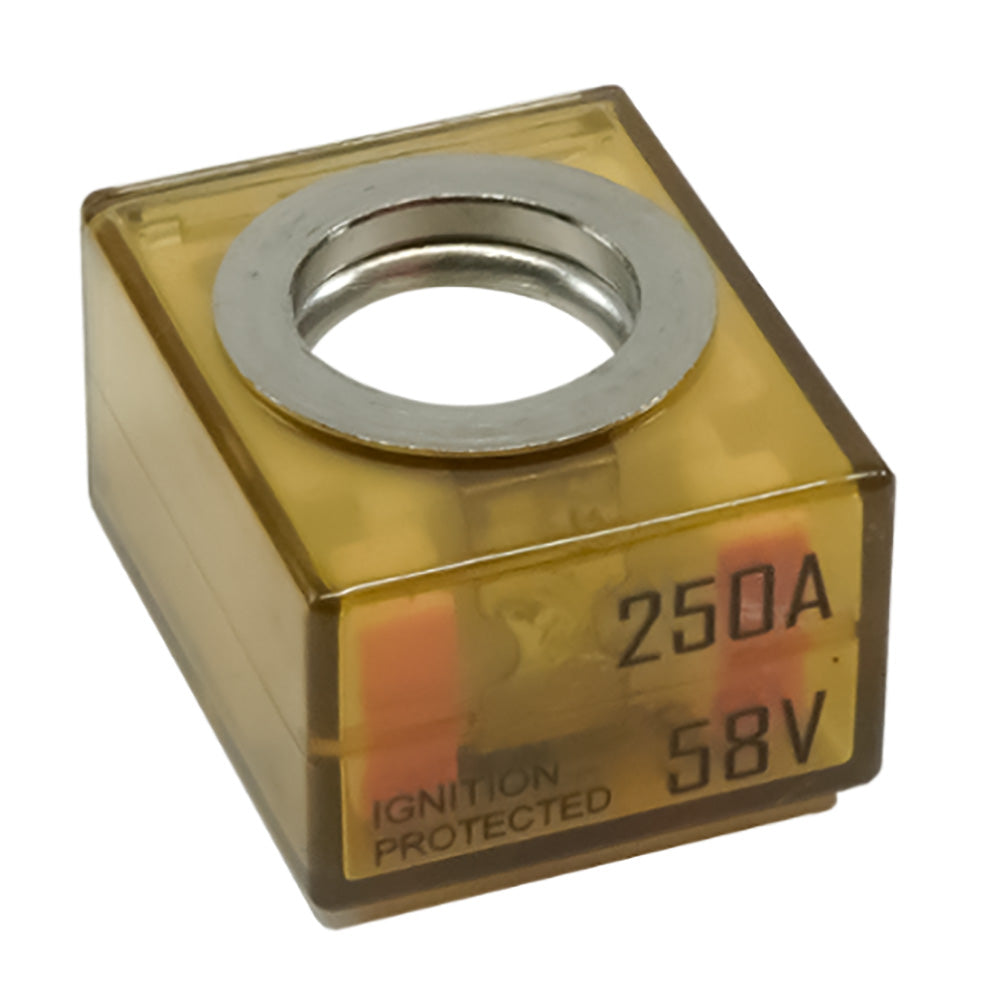

Egis MRBF Terminal Fuse - 250 Amp [3603-250]

Description

MRBF Terminal Fuse - 250 Amp

  • Transparent easy visual of fuse status
  • Ignition-protected SAE/J1171-ISO8846
  • High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
  • Color-coded for easy ID of amperage rating

Features:

  • Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
  • High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
  • Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
  • Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • 58 Vdc Rating: easily supports 12 to 48V nominal applications.
  • High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
  • 4-Year Warranty: We stand behind our product's ability to meet your needs.

Specifications:

  • Continuous Current (Amps): 250
  • Max Voltage (VDC): 58
  • Interrupt Rating @ 14 VDC (Amps): 10,000
  • Interrupt Rating @ 48Vdc (Amps): 5,000
  • Interrupt Rating @ 58Vdc (Amps): 2,000
  • Ingress Protection: IP66

Specifications:

  • Amperage: 250
  • Fuse Type: Terminal
  • Type: Fuses
  • Box Dimensions: 2"H x 2"W x 5"L WT: 0.08 lbs
  • UPC: 850053879661

Egis MRBF Terminal Fuse - 250 Amp [3603-250]

Product form

$7.99

    Description

    MRBF Terminal Fuse - 250 Amp

    • Transparent easy visual of fuse status
    • Ignition-protected SAE/J1171-ISO8846
    • High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
    • Color-coded for easy ID of amperage rating

    Features:

    • Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
    • High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
    • Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
    • Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
    • 58 Vdc Rating: easily supports 12 to 48V nominal applications.
    • High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
    • 4-Year Warranty: We stand behind our product's ability to meet your needs.

    Specifications:

    • Continuous Current (Amps): 250
    • Max Voltage (VDC): 58
    • Interrupt Rating @ 14 VDC (Amps): 10,000
    • Interrupt Rating @ 48Vdc (Amps): 5,000
    • Interrupt Rating @ 58Vdc (Amps): 2,000
    • Ingress Protection: IP66

    Specifications:

    • Amperage: 250
    • Fuse Type: Terminal
    • Type: Fuses
    • Box Dimensions: 2"H x 2"W x 5"L WT: 0.08 lbs
    • UPC: 850053879661
