Description

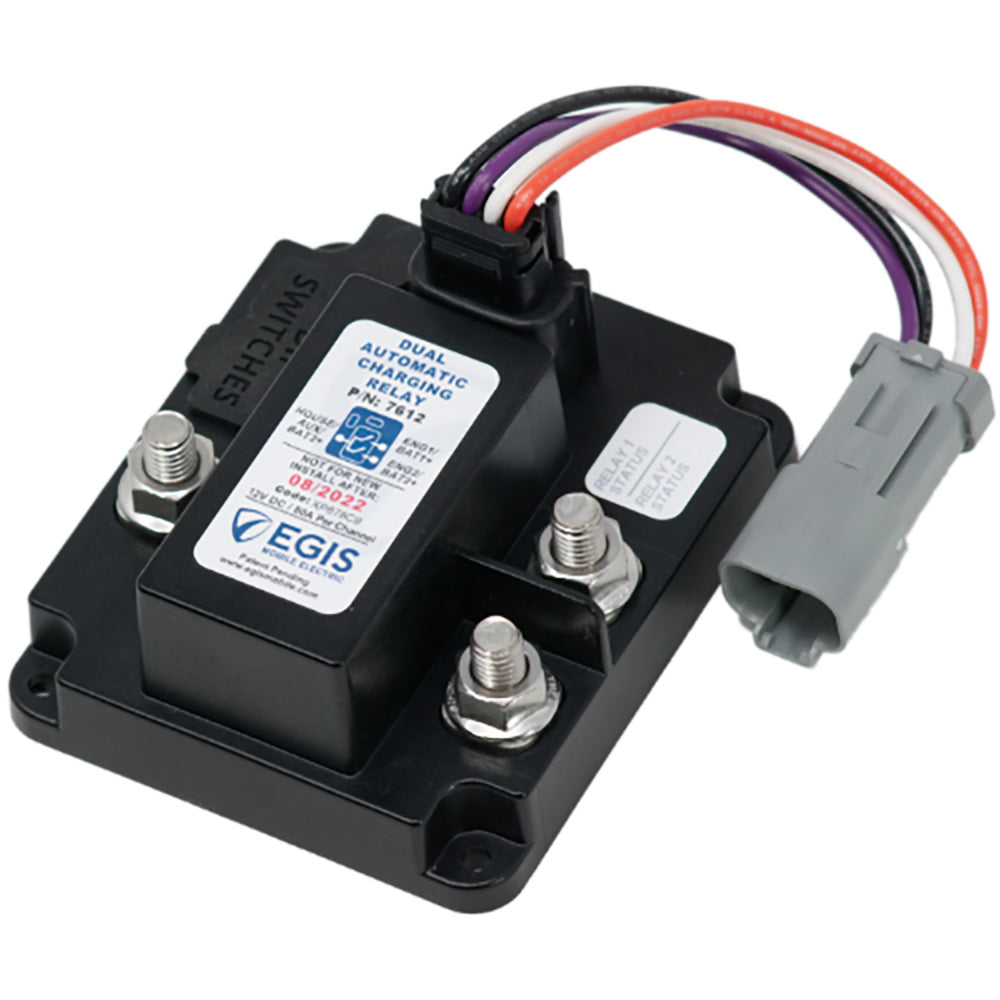

Triple Battery Advanced Automatic Charging Relay (ACR) - 12V
Two Independent ACRs in One Device reduce installation space and time. Significantly lowers the out-of-state current draw.
Features:
- Eliminates Dead Start Batteries by sharing charge sources with all batteries and isolating batteries when no charge sources are present
- Simple & Robust Installation: Integrated sealed plug eliminates corrosion, includes DT04 harness. A single device reduces installation time, space, cost, and points of potential failure
- An additional low-amp output can be used to report device status remotely.
- Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection
- Ultra Low Off-State Current: Compare two typical ACRs (20 mA) vs Dual ACR @ 1.3 mA
- Adjustable Off-Voltage for Auxiliary Battery Priority provides the ability to share start battery energy for auxiliary without risking engine starting ability.
- Start/Engine Isolation input option for ensuring sensitive electronics do not experience voltage sags and spikes from the cranking event.
- Start Assist input option to ensure maximum cranking amps available when necessary.
- 4 Year Industry-Leading Warranty
Specifications:
- Type: Electric
- Box Dimensions: 3"H x 6"W x 7"L WT: 0.85 lbs
- UPC: 304841518077
Brochure (pdf)
