Description

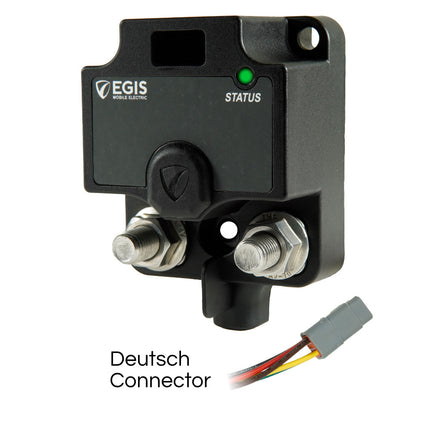

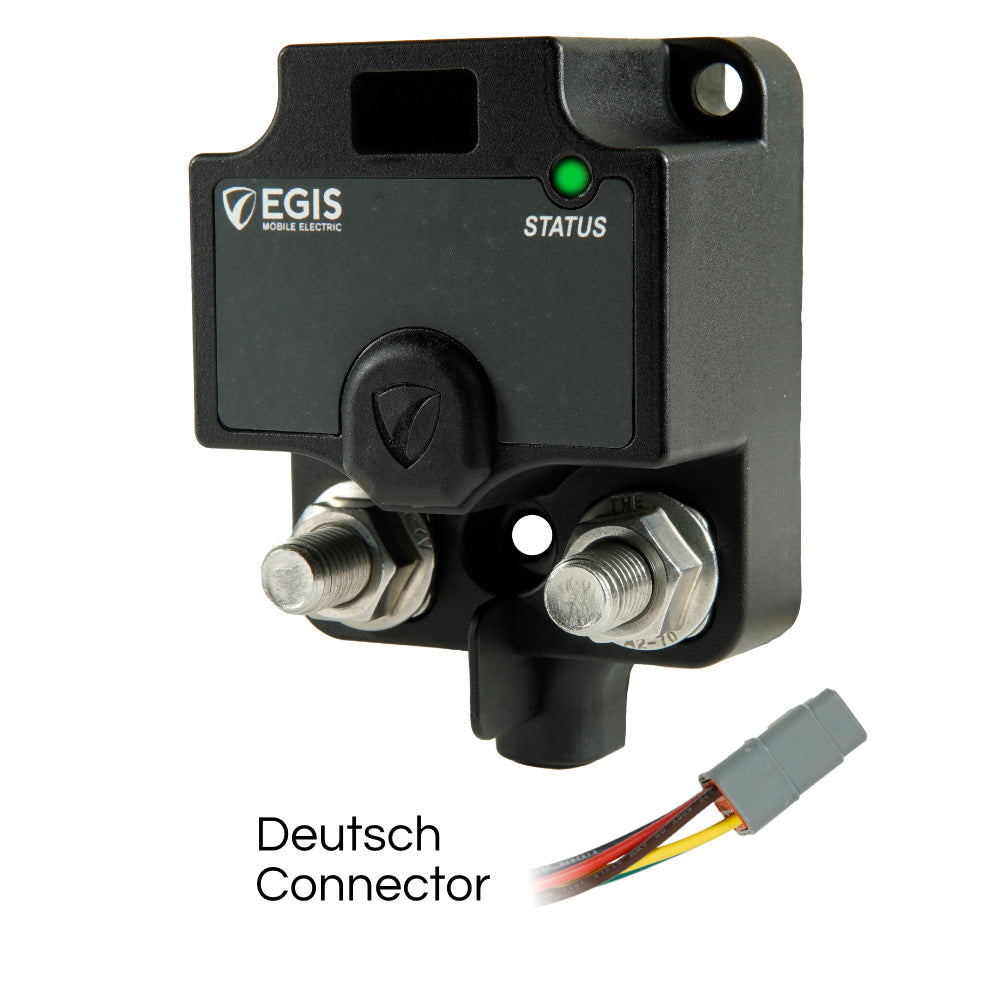

XD Flex 1 Single Relay/ACR without Knob - 6-Pin DTM Connector
Features:
- 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
- Available with or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing
- Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect
- Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs
- Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing
- Local and Remote LED Indicators for Each Relay
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
- Type: Electric
- Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs
- UPC: 850035199824
