Description

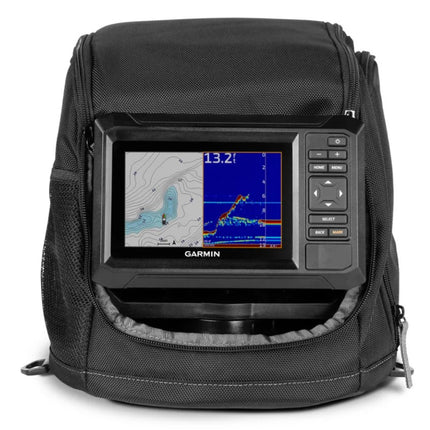

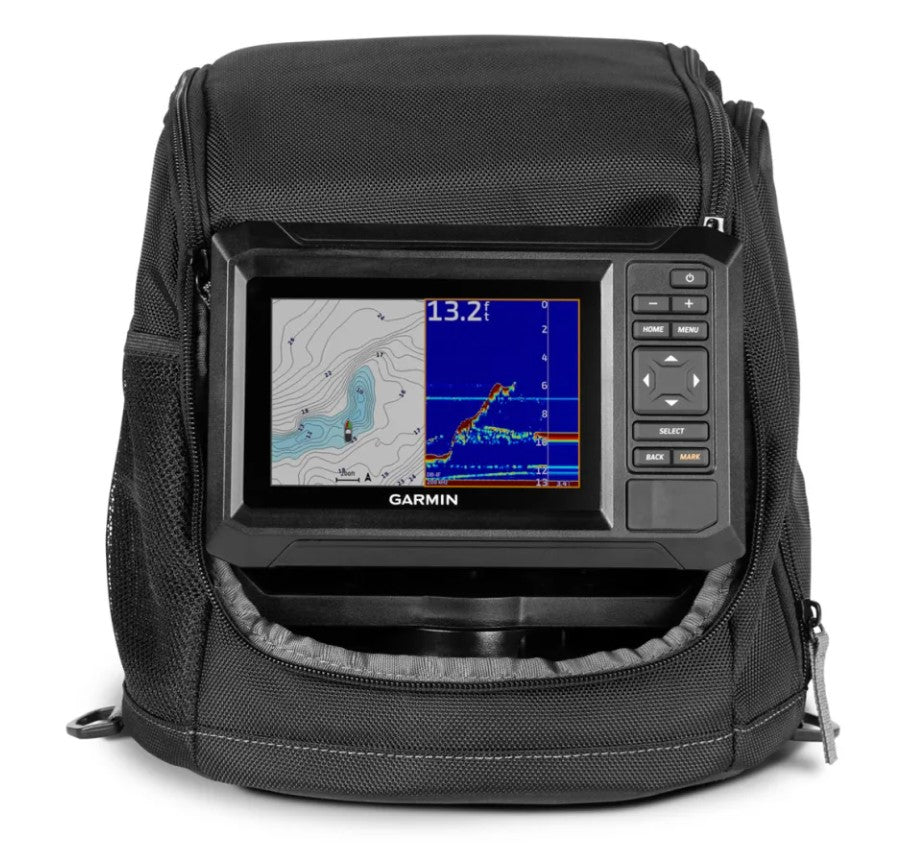

Garmin ECHOMAP UHD2 53cv Ice Bundle With Dualbeam-IF GN+ US Inland
Model: 010-02590-35
- BRIGHT 5" SUNLIGHT-READABLE DISPLAY
- INCLUDED DUAL BEAM-IF TRANSDUCER
- BUILT-IN FLASHER
- GARMIN NAVIONICS+™ MAPS WITH 23,000+ LAKES
- RUGGED, PORTABLE CARRYING CASE
Designed for the passionate angler, the 5-inch ECHOMAP UHD2 Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience.
This portable bundle includes the 5-inch ECHOMAP UHD2 chartplotter with a glove-friendly keyed interface.
This bundle includes a high wide dual beam-IF ice fishing transducer with selectable beamwidth (either 15 or 45 degrees) and provides crisp, clear fish arches with excellent target separation.
You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.
You can create custom pages that combine sonar, flasher and map on your display.
The 5-inch ECHOMAP UHD2 also supports ClearVü™ scanning sonar for open water. Get nearly photographic images of what’s below the surface (transducer sold separately).
Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.
Specifications
| General |
| Dimensions |
7.4 in x 4.8 in x 2.4 in (18.8 x 12.2 x 6.2 cm) |
| Weight |
9.5 lbs (4.3 kg) |
| Water rating |
IPX7 |
| Display type |
WVGA, IPS |
| Display size |
4.3 in x 2.6 in (10.9 x 6.6 cm) |
| Display resolution |
800 x 480 pixels |
| Input |
Keyed |
| Maps and Memory |
| Accepts data cards |
1 microSD™ card; 32 GB maximum size |
| Waypoints |
5000 |
| Track points |
50,000 |
| Tracks |
50 saved tracks |
| Navigation routes |
100 |
| Ice Fishing Details |
| Battery type, size |
SLA, 7Ah |
| Bag size |
S |
| Included transducer |
DB-IF |
| Transducer holding feature |
Foam float |
| Sensors |
| GPS |
Yes |
| GLONASS |
Yes |
| Galileo |
Yes |
| Has built-in receiver |
Yes |
| Receiver |
5 Hz |
| NMEA 2000 compatible |
Yes |
| Supports WAAS |
Yes |
| Built-in Maps |
| Built-in Auto Guidance+ |
Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal |
Yes |
| Garmin Navionics+ (Inland) |
Yes |
| Optional Map Support |
| Garmin Navionics+™ |
Yes |
| Garmin Navionics Vision+™ |
Yes |
| TOPO 100K |
Yes |
| Standard Mapping |
Yes |
| Garmin Quickdraw Contours |
Yes |
| Chartplotter Features |
| ActiveCaptain® compatible |
Yes |
| Electrical Features |
| Power input |
9 to 18 Vdc |
| Sonar Features |
| Displays sonar |
Yes |
| Power output |
500 W |
| Traditional sonar (dual frequency/beam) |
Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü |
Built-in 260/455/800/1000/1200 kHz |
| Networking and Connections |
| 4-pin transducer ports |
1 |
| Garmin Wi-Fi network (local connection) |
Yes |
What's in the Box:
- ECHOMAP™ UHD2 chartplotter (version depends on mapping selected)
- Dual Beam-IF transducer
- Tilt/swivel mount
- Portable bag
- Base/handle
- Foam float
- Power cable
- Rechargeable battery
- Battery charger
- Documentation
