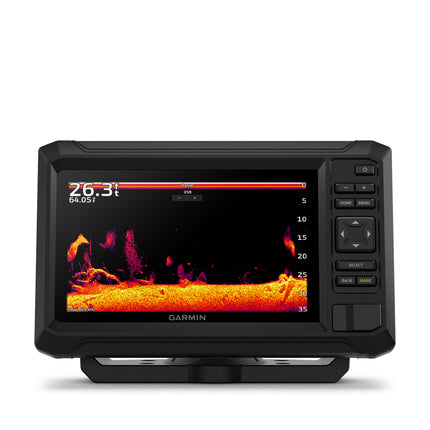

Fish like a local with the 7 in ECHOMAP™ UHD2 chartplotters. See clear, sharp fish arches with Garmin traditional sonar. Use ClearVü™ scanning sonar featuring vivid color palettes for clear, high-contrast views below your boat. Know the waters you're in as if you grew up fishing them by using built-in Garmin Navionics+™ mapping with coastal or inland content. Use built-in Wi-Fi® (Wi-Fi is a registered trademark of the Wi-Fi Alliance) connectivity to share sonar, waypoints and routes with another compatible Garmin chartplotter (sold separately). You can also pair with the free all-in-one ActiveCaptain® app on your compatible smartphone for access to the OneChart™ feature, software updates and more.
| General |
| Dimensions |
9.1 in x 5.6 in x 2.6 in (23.2 x 14.3 x 6.7 cm) |
| Weight |
1.5 lbs (0.7 kg) |
| Water rating |
IPX7 |
| Display type |
WVGA, TN |
| Display size |
6.1 in x 3.4 in (15.5 x 8.7 cm) |
| Display resolution |
800 x 480 pixels |
| Mounting options |
Bail or flush |
| Input |
Keyed |
| Maps and Memory |
| Accepts data cards |
1 microSD™ card; 32 GB maximum size |
| Waypoints |
5,000 |
| Track points |
50,000 |
| Tracks |
50 saved tracks |
| Navigation routes |
100 |
| Sensors |
| GPS |
Yes |
| Galileo |
Yes |
| Has built-in receiver |
Yes |
| Receiver |
5 Hz |
| Supports WAAS |
Yes |
| Built-in Maps |
| Built-in Auto Guidance+ |
Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ (inland and coastal) |
Yes |
| Garmin Navionics+ (coastal) |
Yes |
| Garmin Navionics+ (inland) |
Yes |
| Tide tables |
Yes |
| Optional Map Support |
| BlueChart g3 |
Yes |
| BlueChart g3 Vision |
Yes |
| LakeVü g3 |
Yes |
| LakeVü g3 Ultra |
Yes |
| Garmin Navionics+™ |
Yes |
| Garmin Navionics Vision+™ |
Yes |
| TOPO 100K |
Yes |
| Standard mapping |
Yes |
| Garmin Quickdraw Contours |
Yes |
| Chartplotter Features |
| ActiveCaptain® compatible |
Yes |
| Electrical Features |
| Power input |
9 to 18 Vdc |
| Typical current draw at 12 Vdc |
1.0 A |
| Maximum current draw at 12 Vdc |
1.5 A |
| Maximum power usage at 10 Vdc |
18W |
| Sonar Features |
| Displays sonar |
Yes |
| Power output |
500 W |
| Traditional sonar (dual frequency/beam) |
Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü |
Built-in 260/455/800/1000/1200 kHz |
| Networking and Connections |
| 4-pin transducer ports |
1 |
| Garmin Wi-Fi network (local connection) |
Yes |
