Description

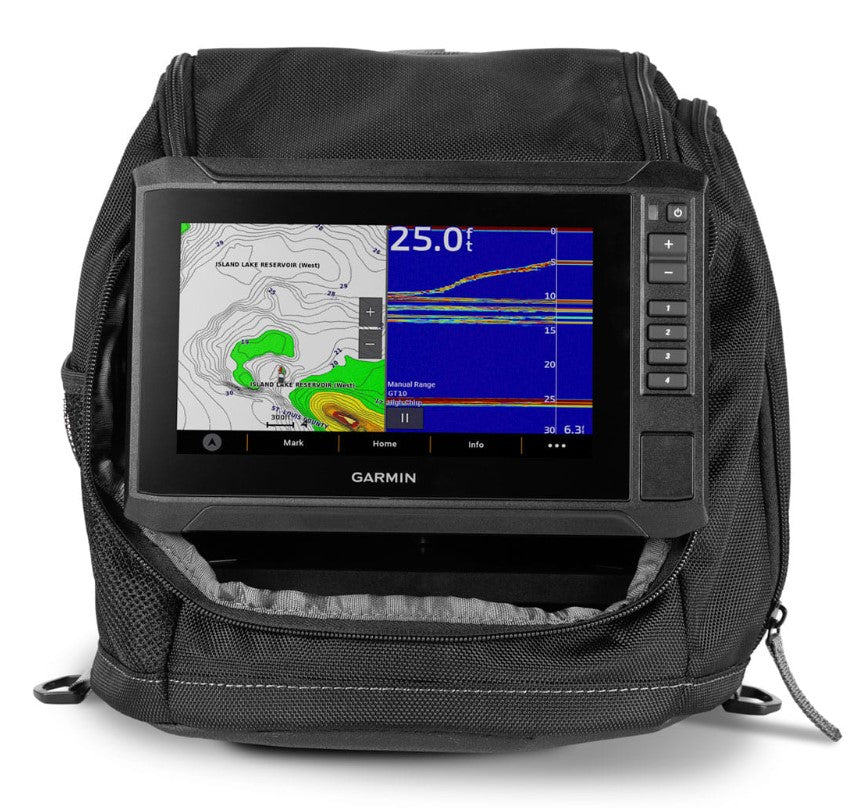

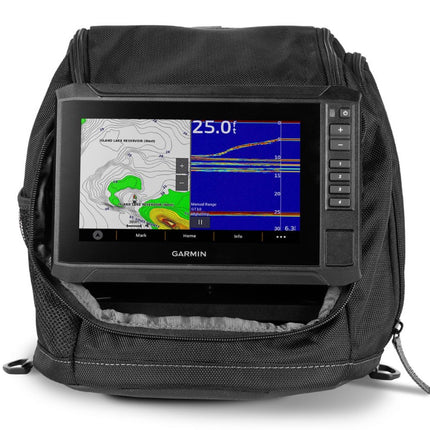

Garmin ECHOMAP UHD2 73sv Ice Bundle With GT10HN-IF GN+ US Inland
Model: 010-02684-35
- Bright 7 in touchscreen display with keyed assist
- Included transducer so you can see what's below
- Built-in flasher
- Garmin Navionics+™ maps with 23,000+ lakes
- Rugged, portable carrying case
Designed for the passionate angler, the ECHOMAP UHD2 73sv Ice Fishing Bundle provides detailed maps and sonar, so you can transform your fishing experience.
The 7 in ECHOMAP UHD2 73sv chartplotter with touchscreen and keyed assist is perfect on the ice or on your boat (additional accessory purchase required).
This bundle includes the GT10HN-IF, a high narrow CHIRP ice fishing transducer with selectable beamwidth (7 to 16 degrees), and it provides crisp, clear fish arches with excellent target separation.
Get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.
You can create custom pages that combine sonar, flasher and map on your display.
ECHOMAP UHD2 73sv also supports ClearVü™ and SideVü™ scanning sonars for nearly photographic images of what's below the boat (transducer sold separately).
Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.
Specifications
| General |
| Dimensions |
10.5 in x 9.5 in x 10.5 in (26.7 x 22.9 x 26.7 cm) |
| Weight |
11.0 lbs (5.0 kg) |
| Water rating |
IPX7 |
| Touchscreen |
Yes |
| Display type |
WVGA, TN |
| Display size |
6.1 in x 3.4 in, 7.0 in diagonal (15.5 x 8.7 cm, 17.8 cm) |
| Display resolution |
800 x 480 pixels |
| Input |
Touchscreen with keyed assist |
| Maps and Memory |
| Accepts data cards |
1 microSD™ card; 32 GB maximum size |
| Waypoints |
5,000 |
| Track points |
50,000 |
| Tracks |
50 saved tracks |
| Navigation routes |
100 |
| Ice Fishing Details |
| Battery type, size |
SLA, 7Ah |
| Bag size |
S |
| Included transducer |
GT10HN-IF |
| Transducer holding feature |
Foam float |
| Sensors |
| GPS |
Yes |
| GLONASS |
Yes |
| Galileo |
Yes |
| BeiDou |
Yes |
| Has built-in receiver |
Yes |
| Receiver |
10 Hz |
| NMEA 2000 compatible |
Yes |
| Supports WAAS |
Yes |
| Supports multi-band, multi-constellation GPS |
Yes |
| Built-in Maps |
| Built-in Auto Guidance+ |
Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ (inland and coastal) |
Yes |
| Garmin Navionics+ (inland) |
Yes |
| Optional Map Support |
| Garmin Navionics+™ |
Yes |
| Garmin Navionics Vision+™ |
Yes |
| TOPO 100K |
Yes |
| Standard mapping |
Yes |
| Garmin Quickdraw Contours |
Yes |
| Chartplotter Features |
| ActiveCaptain® compatible |
Yes |
| Electrical Features |
| Power input |
9 to 18 Vdc |
| Sonar Features |
| Displays sonar |
Yes |
| Power output |
500 W |
| Traditional sonar (dual frequency/beam) |
Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü |
Built-in 260/455/800/1000/1200 kHz |
| SideVü |
Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar |
Yes |
| LiveScope |
Yes |
| Networking and Connections |
| NMEA 2000® ports |
Yes |
| Garmin Marine Network ports |
1 |
| 12-pin transducer ports |
1 |
| Bluetooth® pairing |
Yes |
| ANT® (connectivity) |
Yes |
| Garmin Wi-Fi network (local connection) |
Yes |
What's in the Box:
- ECHOMAP™ UHD2 73sv chartplotter
- GT10HN-IF ice fishing transducer
- Tilt/swivel mount
- Portable bag
- Base/handle
- Foam float
- Power cable
- Rechargeable battery
- Battery charger
- Documentation
