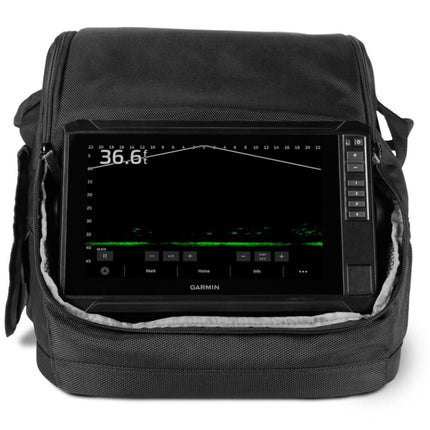

Garmin ECHOMAP UHD2 93sv Panoptix Livescope Ice Bundle GN+ US Inalnd
Model: 010-02688-30
- SEE UP TO 200’ IN ANY DIRECTION WITH REAL-TIME SONAR
- USE LIVESCOPE™ FORWARD MODE SO YOU KNOW WHERE TO DRILL
- USE LIVESCOPE™ DOWN MODE SO YOU CAN KEEP AN EYE ON YOUR JIG AND THE FISH
- INCLUDES A RUGGED, PORTABLE CARRYING CASE
Drill fewer holes and catch more fish with the LiveScope Ice Fishing Bundle. It includes a 9-inch ECHOMAP™ UHD2 combo with LVS32-IF transducer and swivel pole mount.
Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with keyed assist, allowing you to see up to 200’ in any direction.
The LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays flexible, even in freezing conditions
Get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.
You can create custom pages that combine sonar, flasher and map on your display.

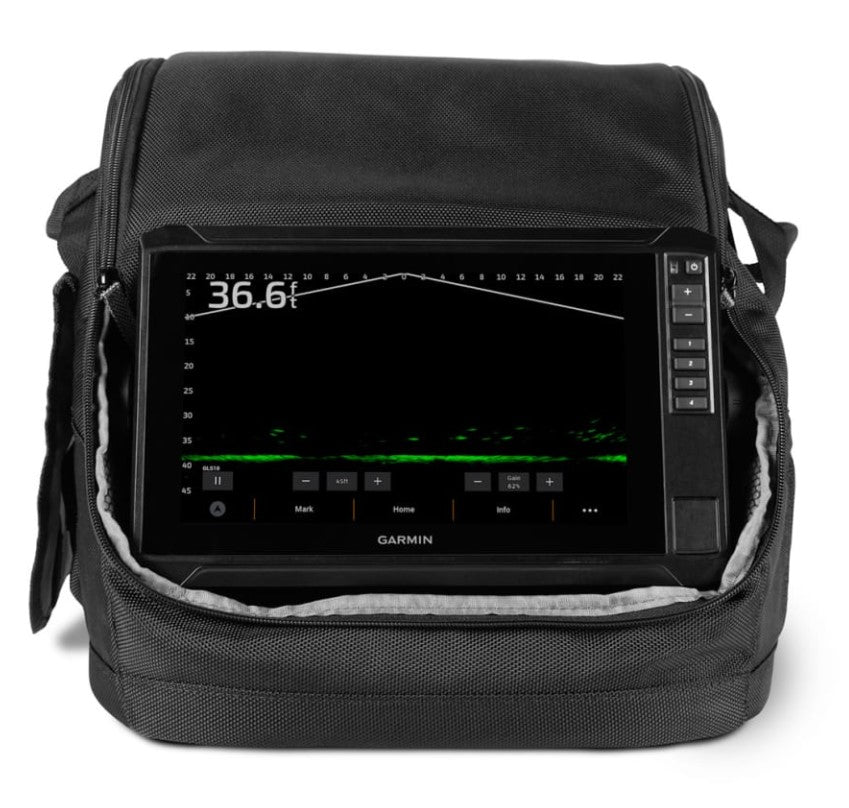

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.
Specifications
| General |
| TOUCHSCREEN |
Yes |
| INPUT |
Touchscreen with Keyed Assist |
| DISPLAY SIZE |
7.8" x 4.5", 9.0" (19.8 x 11.5, 22.9 cm) |
| DISPLAY RESOLUTION |
1024 x 600 pixels |
| DISPLAY TYPE |
WSVGA, TN |
| WEIGHT |
26.9 lbs (12.2 kg) |
| WATERPROOF |
IPX7 |
| Maps & Memory |
| ACCEPTS DATA CARDS |
1 microSD™ card; 32 GB maximum size |
| WAYPOINTS |
5000 |
| TRACK POINTS |
50,000 |
| TRACKS |
50 saved tracks |
| NAVIGATION ROUTES |
100 |
| Ice Fishing Details |
| BATTERY TYPE, SIZE |
SLA, 12Ah |
| BAG SIZE |
Extra Large (XL) |
| INCLUDED TRANSDUCER |
LiveScope™ System with LVS32-IF |
| TRANSDUCER HOLDING FEATURE |
Pole mount |
| Sensors |
| HAS BUILT-IN RECEIVER |
Yes |
| RECEIVER |
10 Hz |
| NMEA 2000 COMPATIBLE |
Yes |
| GPS |
Yes |
| GLONASS |
Yes |
| GALILEO |
Yes |
| BEIDOU |
Yes |
| SUPPORTS WAAS |
Yes |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS |
Yes |
| Connections |
| NMEA 2000® PORTS |
Yes |
| GARMIN MARINE NETWORK PORTS |
1 |
| 12-PIN TRANSDUCER PORTS |
1 |
| BLUETOOTH® PAIRING |
Yes |
| ANT+ (CONNECTIVITY) |
Yes |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) |
Yes |
| Input Voltage |
9 to 18 Vdc |
| Dimensions |
13.8" 12.2" 13.0" (35 31 33 cm) |
What's in the Box:
- ECHOMAP™ UHD2 chartplotter
- LVS32-IF transducer
- LVS32-IF transducer
- GLS™ 10 sonar module
- Ice fishing pole mount
- Tilt mount
- Power cable
- Portable fishing bag with handle
- Rechargeable battery
- Battery charger
- Documentation
