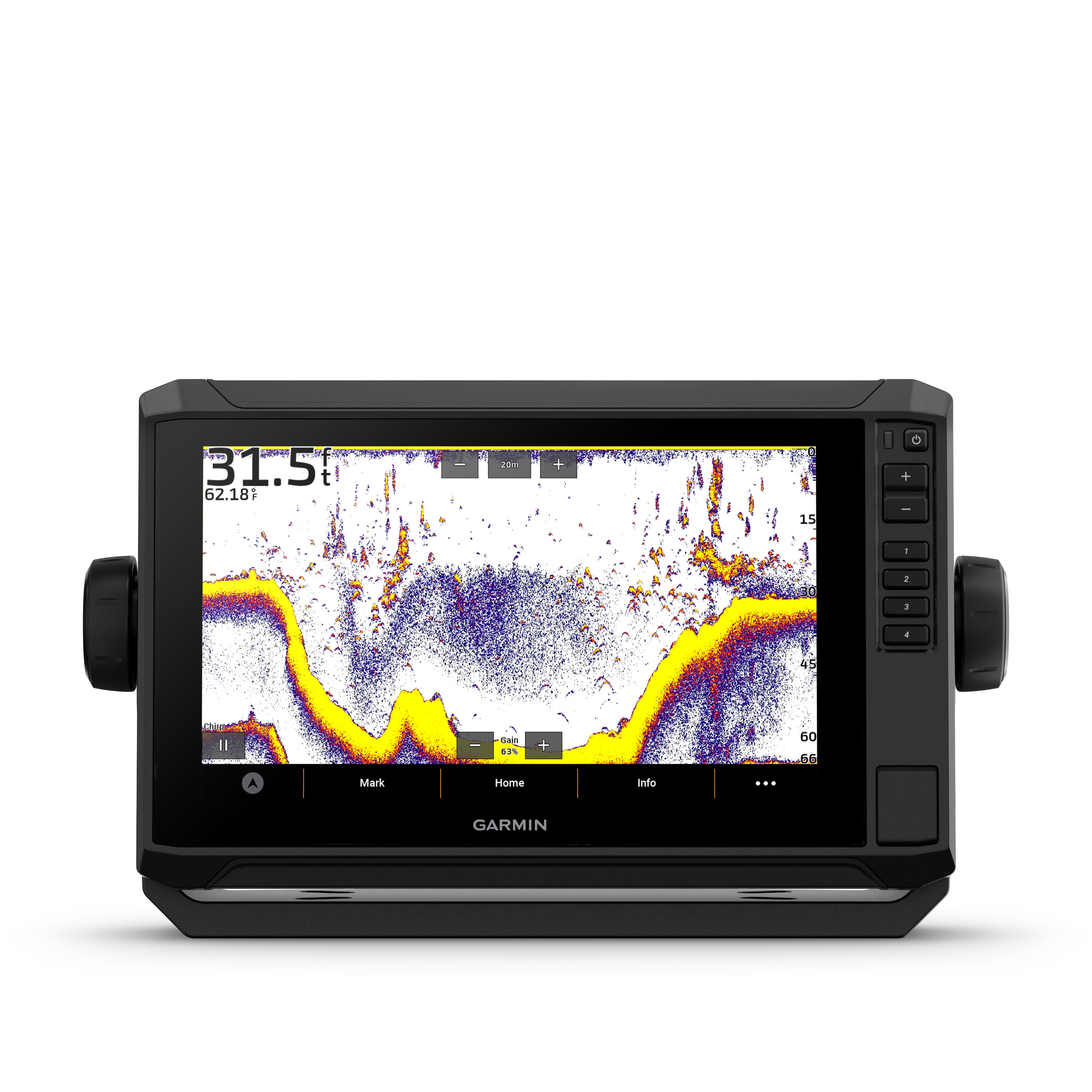

The 9 in ECHOMAP™ UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local.
| General |
| Dimensions |
10.4 in x 6.5 in x 3.2 in (26.4 x 16.6 x 8.0 cm) |
| Weight |
2.9 lbs (1.3 kg) |
| Water rating |
IPX7 |
| Touchscreen |
Yes |
| Display type |
WSVGA, TN |
| Display size |
7.8 in x 4.5 in, 9.0 in diagonal (19.8 x 11.5 cm, 22.9 cm) |
| Display resolution |
1024 x 600 pixels |
| Mounting options |
Bail or flush |
| Input |
Touchscreen with keyed assist |
| Maps and Memory |
| Accepts data cards |
1 microSD™ card; 32 GB maximum size |
| Waypoints |
5,000 |
| Track points |
50,000 |
| Tracks |
50 saved tracks |
| Navigation routes |
100 |
| Sensors |
| GPS |
Yes |
| GLONASS |
Yes |
| Galileo |
Yes |
| BeiDou |
Yes |
| Has built-in receiver |
Yes |
| Receiver |
10 Hz |
| NMEA 2000 compatible |
Yes |
| Supports WAAS |
Yes |
| Supports multi-band, multi-constellation GPS |
Yes |
| Built-in Maps |
| Built-in Auto Guidance+ |
Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ (inland and coastal) |
Yes |
| Garmin Navionics+ (coastal) |
Yes |
| Garmin Navionics+ (inland) |
Yes |
| Tide tables |
Yes |
| Optional Map Support |
| BlueChart g3 |
Yes |
| BlueChart g3 Vision |
Yes |
| LakeVü g3 |
Yes |
| LakeVü g3 Ultra |
Yes |
| Garmin Navionics+™ |
Yes |
| Garmin Navionics Vision+™ |
Yes |
| TOPO 100K |
Yes |
| Standard mapping |
Yes |
| Garmin Quickdraw Contours |
Yes |
| Chartplotter Features |
| AIS |
Yes |
| DSC |
Yes |
| Supports Fusion-Link™ compatible radios |
Yes |
| ActiveCaptain® compatible |
Yes |
| Sailing features |
Yes |
| Electrical Features |
| Power input |
9 to 18 Vdc |
| Typical current draw at 12 Vdc |
1.72 A |
| Maximum current draw at 12 Vdc |
3.5 A |
| Maximum power usage at 10 Vdc |
20.7W |
| Sonar Features |
| Displays sonar |
Yes |
| Power output |
500 W |
| Traditional sonar (dual frequency/beam) |
Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü |
Built-in 260/455/800/1000/1200 kHz |
| SideVü |
Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar |
Yes |
| LiveScope |
Yes |
| Networking and Connections |
| NMEA 2000® ports |
Yes |
| Garmin Marine Network ports |
1 |
| 12-pin transducer ports |
1 |
| Bluetooth® pairing |
Yes |
| ANT® (connectivity) |
Yes |
| Garmin Wi-Fi network (local connection) |
Yes |
