Description

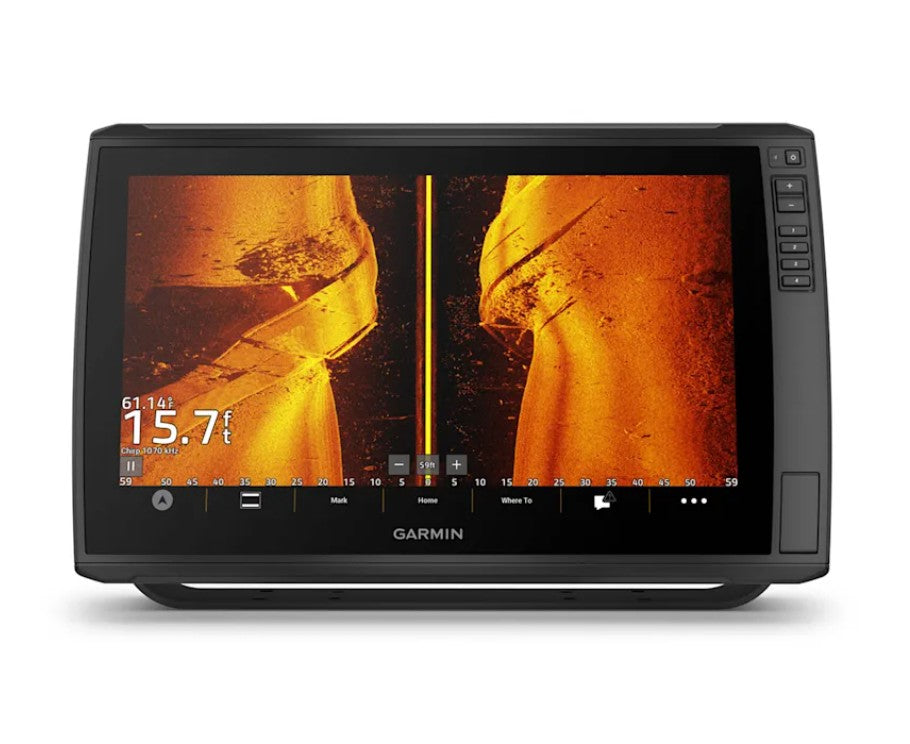

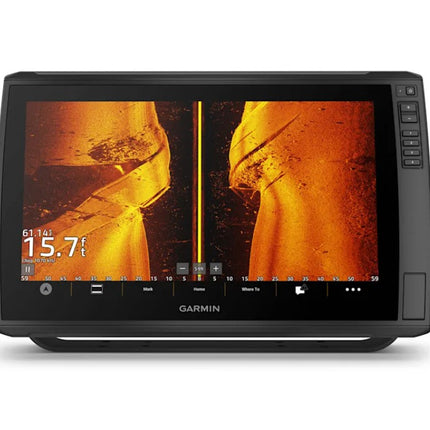

Garmin ECHOMAP Ultra 2 166sv US and Coastal Canada GN+ with GT56UHD-TM Transducer
Model: 010-03386-01
- 16-INCH TOUCHSCREEN WITH KEYED ASSIST
- HDMI OUTPUT CONNECTORS FOR SCREEN SHARING
- BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FEATURES
- SUPPORTS LIVESCOPE SONAR AND MORE
- WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES
- MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY
Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
LIVESCOPE SONAR SUPPORT: The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
BUILT-IN UHD SONAR: Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
PRELOADED CHARTS: Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more. For added features, Garmin Navionics Vision+™ premium mapping is optionally available (sold separately).
HDMI OUTPUT: Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.
VOICE CONTROL FEATURES: Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.
VIVID COLOR PALETTES: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Specifications
| General |
| Dimension |
16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm) |
| Weight |
9.5 lbs (4.31 kg) |
| Water rating |
IPX7 |
| Touchscreen |
Yes |
| Display Type |
FHD, IPS |
| Display Size |
13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal) |
| Display resolution |
1920 x 1080 pixels |
| Mounting Options |
Bail or flush |
| Input |
Touchscreen with Keyed Assist |
| Maps & Memory |
| Accepts Data Cards |
2 microSD™ cards |
| Waypoints |
5000 |
| Track points |
50,000 |
| Tracks |
50 saved tracks |
| Navigation Routes |
100 |
| Sensors |
| GPS |
Yes |
| GLONASS |
Yes |
| Galileo |
Yes |
| BeiDou |
Yes |
| Has built-in receiver |
Yes |
| Receiver |
10 Hz |
| NMEA 2000 Compatible |
Yes |
| NMEA 0183 Compatible |
Yes |
| Supports WAAS |
Yes |
| Supports multi-band, multi-constellation GPS |
Yes |
| Optional Map Support |
| BlueChart g3 |
Yes |
| BlueChart g3 Vision |
Yes |
| LakeVü g3 |
Yes |
| LakeVü g3 Ultra |
Yes |
| Garmin Navionics Vision+™ |
Yes |
| TOPO 100K |
Yes |
| Standard Mapping |
Yes |
| Garmin Quickdraw Contours |
Yes |
| Chartplotter Features |
| AIS |
Yes |
| DSC |
Yes |
| Supports Fusion-Link™ compatible radios |
Yes |
| ActiveCaptain® compatible |
Yes |
| Supports voice commands |
Yes |
| Sailing Features |
Yes |
| Electrical Features |
| Power Input |
9 to 18 Vdc |
| Typical current draw at 12 Vdc |
3.9 A |
| Maximum current draw at 12 Vdc |
6.6 A |
| Maximum power usage at 10 Vdc |
48 W |
| Sonar Features |
| Displays sonar |
Yes |
| Power output |
600 W |
| Traditional sonar (dual frequency/beam) |
Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü |
Built-in 260/455/800/1000/1200 kHz |
| SideVü |
Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar |
Yes |
| Panoptix™ sonar |
Yes |
| Connections |
| NMEA 2000® ports |
1 |
| Video output ports |
1 HDMI |
| Garmin Marine Network Ports |
2 (large connector) |
| 12-pin transducer ports |
12-pin scanning sonar |
| BLUETOOTH® pairing |
Yes |
What's in the Box:
- ECHOMAP Ultra 166sv with Garmin Navionics+
- GT56UHD-TM transducer
- Power cable
- Bail mount with knobs
- Protective sun cover
- Trim caps
- Hardware
- Documentation
