Description

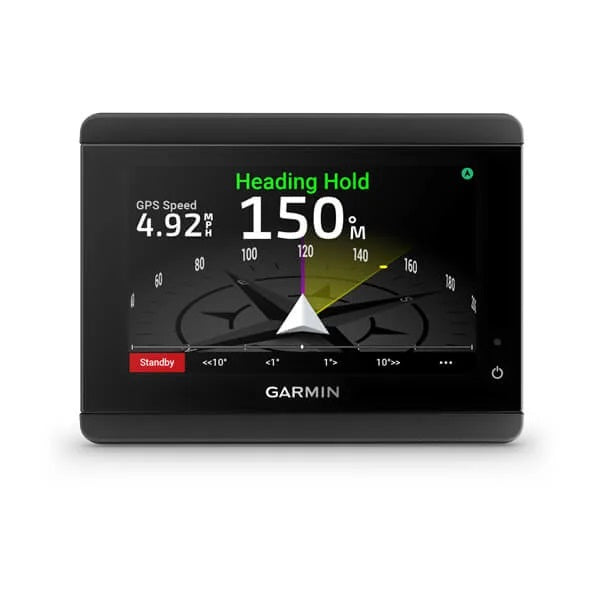

Garmin GHC™ 50 Marine Autopilot InstrumentModel: 010-02731-00
- A 5 in touchscreen interface with a bright display. Call it navigating with a simple touch.
- Sleek. That's the look you get with the instrument's edge-to-edge glass design.
- Share settings with your Garmin MFDs, and watch your integrated system come to life.
- From the Garmin Marine Network (GMN) to wireless connectivity, there are many ways to connect to your autopilot.
- Control your boat your way with wired or wireless remote-controlled options.
When you're ready to discover paradise, the GHC 50 autopilot instrument helps you navigate with ease - wherever the waters take you.
The bright 5 in WVGA touchscreen not only looks good; its anti-glare display makes navigation simple and hassle free.
With a premium industrial design and edge-to-edge glass display, the GHC 50 autopilot instrument aligns perfectly with your high-end GPSMAP® chartplotters, creating a stunning look for your helm.
The choice is yours - control your autopilot instrument via wire or a wireless remote for a navigation experience that works best for you.
If you have multiple compatible Garmin devices on your boat, you can share information among them for a more integrated marine system.
GHC 50 works with all GHP™ Reactor autopilots, select quatix® multisport marine smartwatches, the Garmin autopilot remote and GRID™ 20 remote.
If used as a stand-alone autopilot, wireless connectivity only provides software updates; use the Garmin Marine Network for sharing settings and other connected features.
Specifications
| General |
| Dimensions without sun cover (H x W x D) |
4.13 in x 5.51 in x 2.01 in |
| Dimensions with sun cover (H x W x D) |
4.45 in x 5.67 in x 2.20 in |
| Weight |
11.57 oz (328 g) |
| Display type |
WVGA touchscreen |
| Display resolution |
800 x 480 pixels |
| Water rating |
IPX7 |
| Mounting options |
Flat or flush |
| Connections |
| NMEA 2000 ports |
1 |
| Garmin Marine Network ports |
1 |
| Wireless |
ANT+® connectivity |
| Electrical |
| Power input |
9 to 32 Vdc |
| Typical current draw at 12 Vdc |
220 mA |
| Maximum current draw at 12 Vdc |
400 mA |
| Maximum power usage at 10 Vdc |
4.9 W |
What's in the Box:
- GHC™ 50
- Black trim piece snap cover
- Protective cover
- Flush mount gasket and hardware
- Garmin Marine Network cable
- Garmin Marine Network adapter cable
- NMEA 2000® drop cable
- NMEA 2000 T-connectors and terminators
- Documentation
