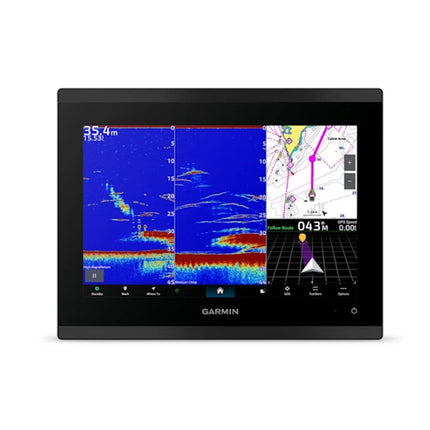

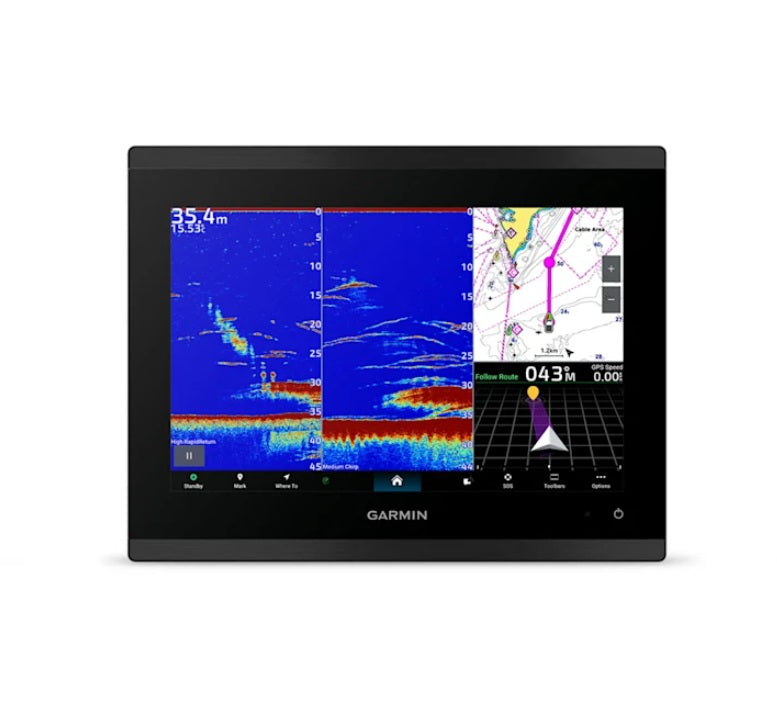

GPSMAP® 9010xsv is the integrated touchscreen chartplotter designed for captains who demand the best. Cruisers and anglers can enjoy edge-to-edge clarity with a high-resolution display on a glass helm with premium design and materials. Plot your paradise faster than ever with processing power that's up to 7 times faster than previous generations, and get 5GHz Wi-Fi® connectivity for ActiveCaptain® app updates. Our best sonar ever helps you spend less time fishing and more time catching. Get a connected boating experience by linking your compatible MFDs, cameras, sonars and more on the gigabit-speed Garmin BlueNet™ network. The full suite of Garmin SailAssist™ features allow you to see wind speed, direction and other critical data at a glance. When your hands are full, use spoken commands to operate the chartplotter (compatible headset or smartwatch required; not included). Navigate on the water with support for Garmin Navionics+™ charts, or upgrade to premium Garmin Navionics Vision+™ charts. Garmin Navionics+ includes a 1-year subscription for daily chart updates and support for Auto Guidance+™ technology, which helps you navigate and avoid land- and water-based obstacles based on chart data (for planning purposes only and does not replace safe navigation operations).
| General |
| Dimensions |
10.24 in x 7.87 in x 3.54 in (26.0 cm x 20 cm x 9.1 cm) |
| Weight |
5.55 lbs (2.52 kg) |
| Water rating |
IPX7 |
| Display type |
WUXGA, IPS; edge-lit backlight; touchscreen |
| Display size |
8.54 in x 5.34 in; 10.1 in diagonal (21.7 cm x 13.6 cm; 25.6 cm diagonal) |
| Display resolution |
1920 x 1200 pixels |
| Mounting options |
Bail, flat or flush |
| Polarized lens viewability |
Yes |
| Maps and Memory |
| Accepts data cards |
2 microSD™ cards (on rear of product) |
| Supports USB card reader |
Yes |
| Waypoints |
5,000 |
| Tracks |
50 saved tracks; 50,000 track points |
| Routes |
100 |
| Optional map support |
BlueChart® g3, BlueChart g3 Vision, LakeVü™ g3, LakeVü g3 Ultra, Garmin Navionics+™, Garmin Navionics Vision+™, TOPO 100K, standard mapping, Garmin Quickdraw Contours, raster chart support |
| Sensors |
| Satellite systems |
GPS, GLONASS, Galileo, BeiDou |
| Built-in receiver |
Yes, 10 Hz |
| Supports WAAS |
Yes |
| Multi-band, multi-constellation GPS |
Yes |
| NMEA 2000 compatible |
Yes |
| NMEA 0183 compatible |
Yes |
| Chartplotter Features |
| SmartMode compatible |
Yes |
| AIS |
Yes |
| DSC |
Yes |
| Fusion-Link™ compatible radios |
Yes |
| GCV black box sonar support |
Yes |
| ActiveCaptain® compatible |
Yes |
| Supports voice commands |
Yes |
| Spoken audio alerts |
Yes |
| GRID compatible |
Yes |
| GRID 20 compatible |
Yes |
| Wireless remote compatible |
Yes |
| Sailing features |
Yes |
| OneHelm support |
Yes |
| Electrical |
| Power input |
10 to 32 Vdc |
| Typical current draw at 12 Vdc |
3.6 A |
| Maximum current draw at 12 Vdc |
4.14 A |
| Maximum power usage at 10 Vdc |
45 W |
| Sonar |
| Displays sonar |
Yes |
| Power output |
1 kW |
| Traditional sonar (dual frequency/beam) |
Yes (dual 1 kW) |
| Built-in xCHIRP |
Yes |
| Built-in RapidReturn |
Yes (up to 2x) |
| ClearVü |
Yes |
| SideVü |
Yes |
| Panoptix™ sonar |
Yes |
| Networking and Connections |
| NMEA 2000 ports |
1 |
| NMEA 0183 ports |
1 input (Rx), 1 output (Tx) |
| Video input ports |
1 BNC composite; 1 HDMI (HDCP compliant) |
| Video output ports |
1 HDMI |
| J1939 ports |
1 |
| Garmin BlueNet™ network ports |
2 |
| USB ports |
1 (USB-C) |
| Bluetooth® pairing |
Yes |
| ANT® connectivity |
Yes |
