Description
Garmin GT41-THP Stainless Steel Thru-Hull Pair
DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (50/200 kHz) Transducer with Temp (12-pin)
Model: 010-12221-11
UPC: 753759128050
This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. These traditional sonar and CHIRP DownVü/SideVü transducers are optimized for depth performance and rough conditions.
The CHIRP DownVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.
Specifications
| DownVü/SideVü Capability |
| CHIRP |
Yes |
| Frequency |
260/455 |
| Power |
500w each total 1,500w |
| Maximum depth |
1000 ft down, 750ft left and right |
| Traditional Sonar Capability |
| CHIRP |
No |
| Frequency |
50/200 |
| Power |
600w |
| Maximum depth |
1,500 saltwater |
| Water temperature |
Yes |
| Maximum deadrise |
25° |

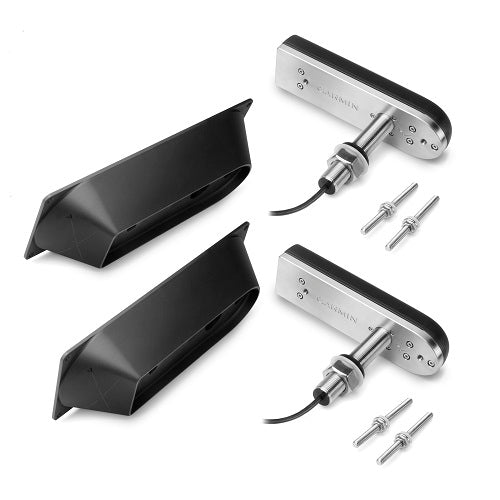

What's in the Box:
- 12-pin port transducer with stainless steel stem
- 12-pin port transducer with stainless steel stem
- Fairing block x 2
- isolation plate and bushings x2
- Mounting hardware
- Instalation instructions
- y-cable
