Description

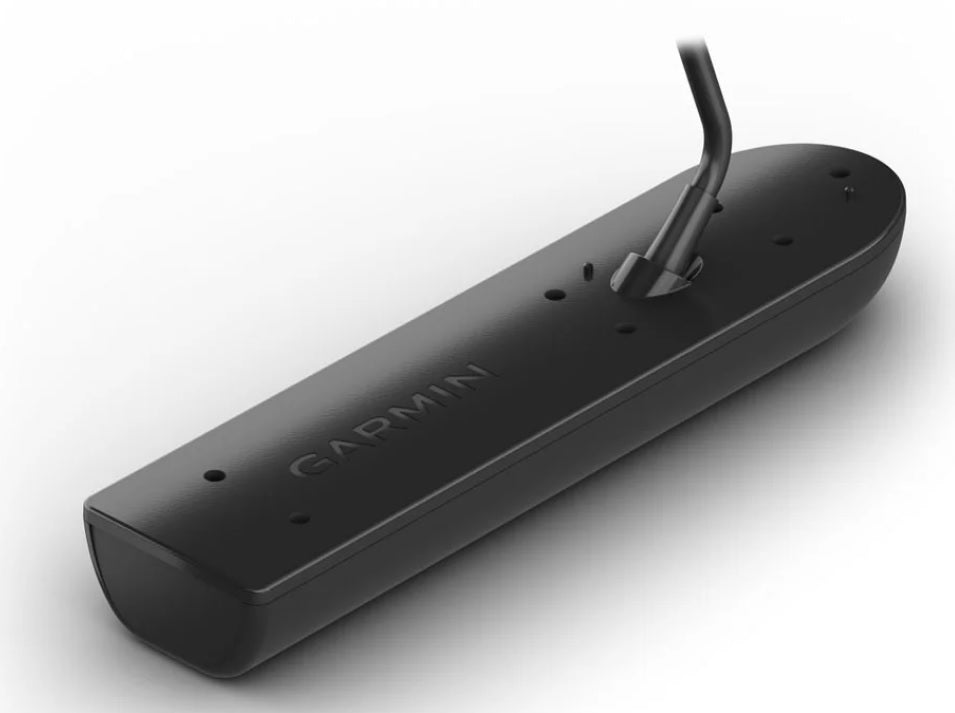

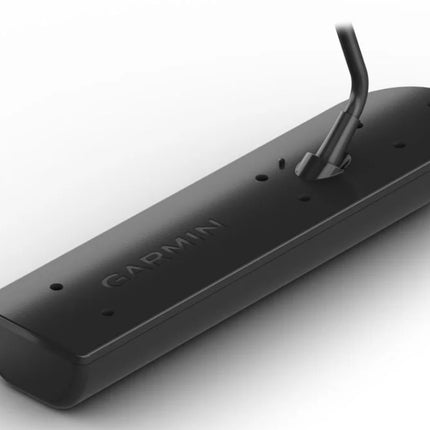

Garmin GT56UHD-TR Ultra High-Definition Transducer for 63 in Force Kraken Trolling MotorsModel: 010-02732-01
- Trolling motor transducer for compatible Force® Kraken trolling motors with a 63 in shaft
- Ultra High-Definition ClearVü™ and SideVü™ scanning sonar at 455 kHz, 800 kHz and 1000 kHz
- High-wide traditional CHIRP sonar, 150-240 kHz
- Provides depth and water temperature data
- 12-pin connector
- Cable length is sized for black Force Kraken models with a factory-installed transducer; white models require a separate extension cable and mount
Use this transducer on your compatible Force® Kraken trolling motor. Please note, the cable length is designed for Force Kraken trolling motors with a factory-installed transducer (black models). White 48 in, 63 in and 75 in models require a separate extension cable purchase and a trolling motor mount or nose cone mount for the transducer. White 90 in models should use a GT56UHD-TM and transducer replacement kit.
Specifications
| Transducer frequency |
Traditional high-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100 kHz) |
| Transducer power |
Traditional 350 W; ClearVü/SideVü 500 W |
| Beamwidth |
Traditional CHIRP: 24 to 16 deg; ClearVü and SideVü: 0.52 x 52 deg at 1000 kHz, 0.64 x 35 deg at 800 kHz, 1.1 x 52 deg at 455 kHz |
| Maximum depth |
Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft |
| Cable length |
63 in |
| Depth and temperature |
Yes |
| Number of pins |
12 |
What's in the Box:
- GT56UHD-TR transducer
- Transducer replacement kit
- Mounting hardware
- Documentation
