Description

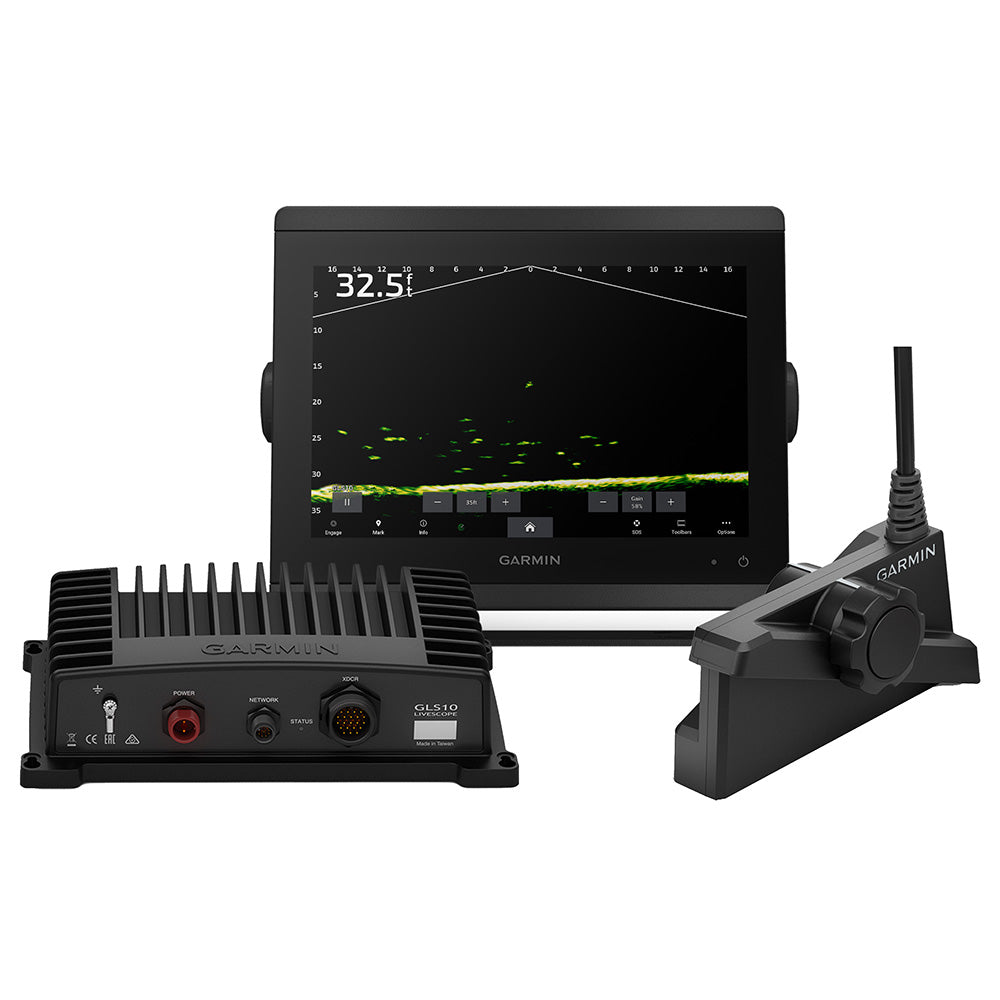

LiveScope™ Plus Ice House System
Upgrade your on-ice experience with the GPSMAP® 8610xsv chartplotter, LiveScope Plus System, and everything else you’ll need to catch more fish.
Features:
- 10” full HD IPS touchscreen display
- Share to your TV or external display via HDMI output (HDMI cable not included)
- LiveScope™ forward and LiveScope™ down modes
- Preloaded with Garmin Navionics+™ mapping of 25,000+ inland and coastal lakes
GPSMAP® 8610xsv
This chartplotter features a 10” full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.
Ice House System
Get a GLS™ 10 sonar black box with a swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.
LiveScope Modes
With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.
Garmin Navionics+ Maps
You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.
Custom Combos
You can create custom pages that combine sonar, flashers, and maps on your display.
Built-In Sonar
See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.
In the Box:
- GPSMAP 8610xsv with preloaded Garmin Navionics+™ Coastal Charts and Inland Mapping for U.S. or Canada
- LiveScope Plus LVS34-IF transducer
- GLS™ 10 black box sonar module with power and network cables
- Ice fishing pole mount
- Documentation
General Specifications:
- Dimensions: 10.25 x 8.0625 x 2.95 in. / 25.9 x 20.5 x 7.5 cm
- Touchscreen: Yes
- Input: Touchscreen
- Display Size: 8.6 x 5.4 in., 10.1" in. diagonal / 21.8 x 13.7 cm; 25.7 cm diagonal
- Display Resolution: 1920 x 1200 pixels
- Display Type: WVGA, IPS
- Weight: 15.4 lbs / 7.0 kg
- Waterproof: IPX7
Maps & Memory:
- Accepts Data Cards: 2 microSD™ cards
- Waypoints: 5000
- Track Points: 50,000
- Tracks: 50 saved tracks
- Navigation Routes: 100
Ice Fishing Details:
- Bag Size: None
- Included Transducer: LiveScope™ Plus System with LVS34-IF
- Transducer Holding Feature: Pole mount
Sensors:
- Has Built-in Receiver: Yes
- Receiver: 10 Hz
- NMEA 2000 Compatible: Yes
- GPS: Yes
- Glonass: Yes
- Galileo: Yes
- Supports Waas: Yes
Built-in Maps:
- Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
Optional Map Support:
- Bluechart G3: Yes
- Bluechart G3 Vision: Yes
- Lakevü G3: Yes
- Lakevü G3 Ultra: Yes
- Garmin Navionics+: Yes
- Garmin Navionics+ VIision+™: Yes
- TOPO: Yes
- Standrad Mapping: Yes
- Garmin Quickdraw Contours: Yes
- Raster Chart Support: Yes
Chartplotter Features:
- ActiveCaptain® Compatable: Yes
Electrical Features:
- Power Input: 10 to 32 Vdc
Sonar Features & Specifications:
- Displays Sonar: Yes
- Power Output: 1 kW
- Traditional Sonar (Dual Frequency/Beam): Built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
- ClearVü™: Built-in 260/455/800/1000/1200 kHz
- SideVü™: Built-in 260/455/800/1000/1200 kHz
- Panoptix™ Sonar: Yes
- Livescope; Yes
Connections:
- NMEA 2000® Ports: 1
- Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
- Video Output Ports: 1 HDMI
- Garmin Marine Network Ports: 2
- 8-Pin Transducer Ports: Yes
- 12-Pin Transducer Ports: Yes
- Bluetooth® Pairing: Yes
- Ant+ (Connectivity): Yes
- Garmin Wi-Fi Network (Local Connection): Yes
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Specifications:
- Included Transducer: LiveScope™ Plus System with LVS34-IF
- Screen Size: 10"
- Touchscreen: Yes
- Transducer Included: Yes
- Box Dimensions: 12"H x 17"W x 22"L WT: 27 lbs
- UPC: 753759325350
