Description

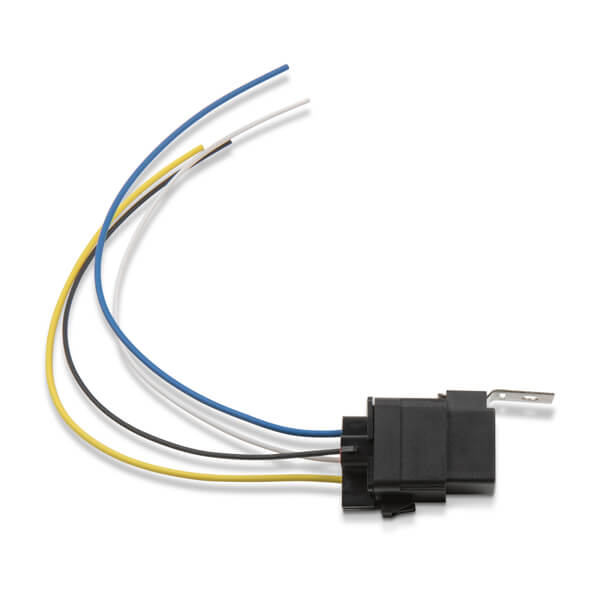

Garmin OnDeck™ Relay Switch (24 Vdc)
Model: 010-13009-07
Control your vessel remotely using the OnDeck™ Hub and a relay switch. Add up to five switches to your OnDeck Hub to stay in control.
Verify that the input power for your OnDeck Hub operates between 15.6 Vdc and 31.2 Vdc to ensure compatibility with your system.
Specifications
| Operating temperature range |
From -15° to 85°C (from 5° to 185°F) |
| Storage temperature range |
From -40° to 155°C (from -40° to 311°F) |
| Control voltage (coil) |
15.6 to 31.2 Vdc |
| Load power min. (contacts) |
0.1 A |
| Load power max. (contacts) |
Up to 9 A at 10 to 16 Vdc Up to 8 A at 20 to 32 Vdc |
