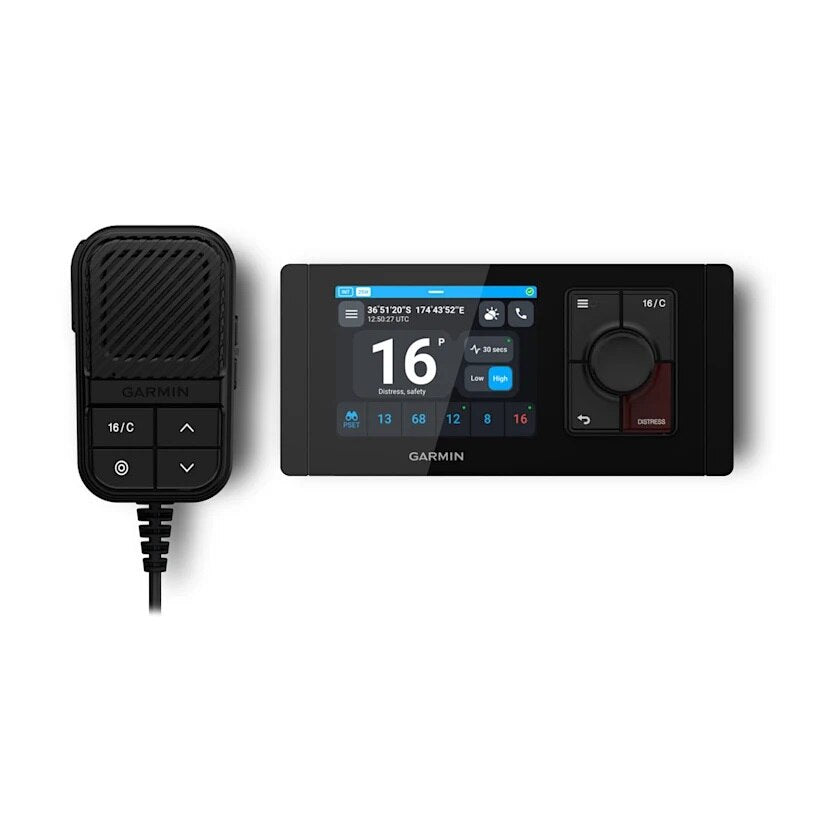

Garmin Signal™ RM 100 Remote Station
Model: 010-02952-00
- WORKS WITH GARMIN SIGNAL VHF RADIOS VIA THE GARMIN BLUENET™ NETWORK
- INTERCOM LINKS REMOTE STATION AND NETWORKED HEAD UNITS
- BRIGHT 3.5-INCH COLOR TOUCHSCREEN DISPLAY
- MODERN EDGE-TO-EDGE GLASS DESIGN
- COMPACT FORM FACTOR AND REDUCED MOUNTING DEPTH
- INCLUDES FIST MIC AND BUILT-IN ADAPTIVE NOISE CANCELLATION
The Garmin Signal RM 100 remote station lets you control your compatible VHF marine radio from a secondary helm or flybridge. Enjoy remote control access to VHF, DSC, AIS and other Garmin Signal VHF radio functions with this premium fixed-mount remote station.
Control VHF, DSC, AIS and other radio functions from a secondary helm or flybridge. The intercom feature enables communication between remote station and networked head units.
Featuring an edge-to-edge glass design and bright 3.5-inch color touchscreen display, it looks great installed at your helm, and the form factor matches the Garmin Signal VHF marine radios.
Specifications
| General |
Head Unit: 75 x 160 x 29 mm (3.0" x 6.3" x 1.2")
Fist Mic: 100 x 60 x 31 mm (3.9" x 2.4" x 1.2") |
| Weight |
Head Unit: 0.53 lb (240 g)
Fist Mic: 0.54 lb (245 g) |
| Operating voltage |
9.6 - 32 VDC |
| Water rating |
IPX7 |
| Display Type |
color IPS LCD, capacitive touch |
| Display Size |
3.5" (89 mm) |
| Display resolution |
640 x 480 pixels |
| Backlight |
1,000 nits |
| Multi-language interface |
yes |
| Electrical Features |
| Typical current draw at 12 Vdc |
Head Unit: 400 mA, 1.8 A max
Fist Mic: 90 mA, 0.9 A max |
| Compass-safe distance |
Head Unit: 70 cm (27.6")
Fist Mic: 40 cm (15.8") |
| Networking & Connections |
| Garmin Marine Network |
GMN 1.0/2.0 |
What's in the Box:
- Garmin Signal™ RM 100 head unit
- Fist mic
- Sun cover
- Remote station power and external audio cable with fuse (2 m)
- Fist mic power cable with fuse (2 m)
- Cable for Garmin BlueNet™ network (6 m)
- Mounting hardware
- Mounting template
- Documentation
