Description

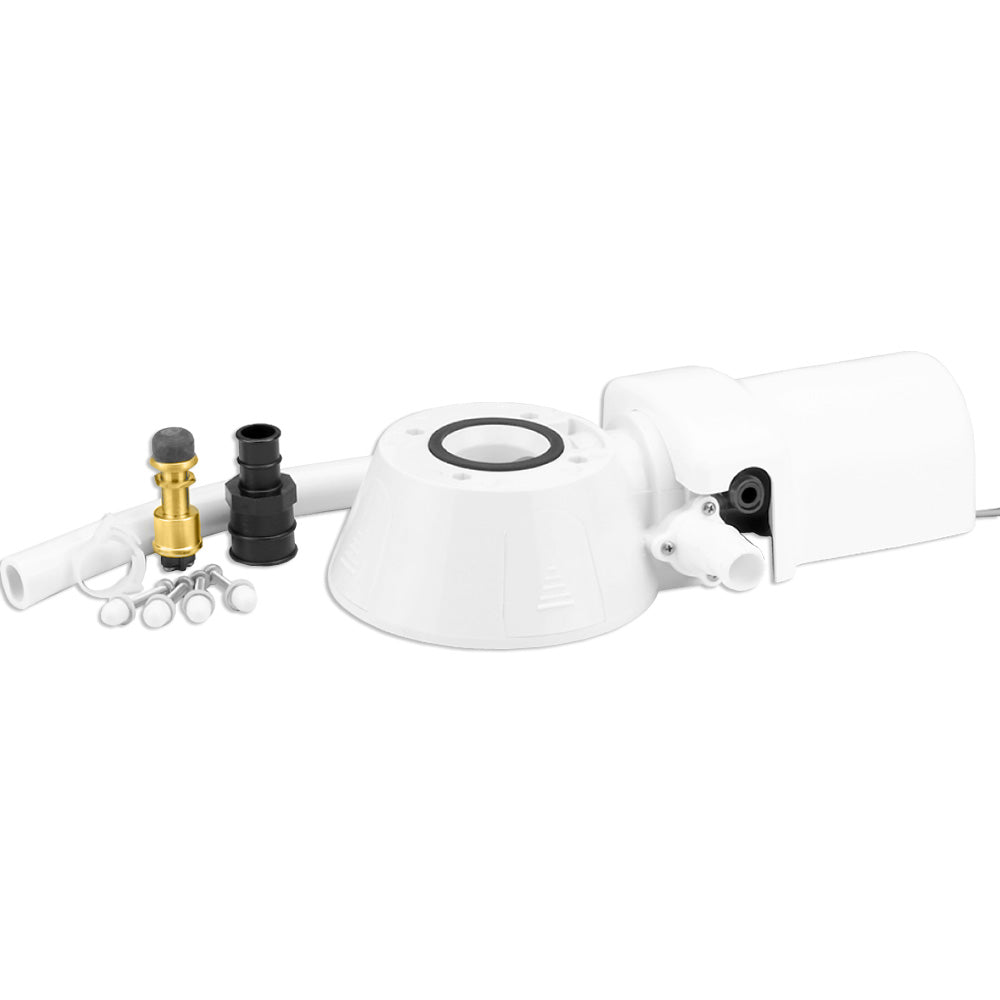

Conversion Kit
Convert Jabsco manual toilet compact and regular bowl models to full electric operation without the need to alter existing inlet or discharge seacocks.
- Also converts most toilets with 4 bolt screw pattern on a 3-3/4" diameter bolt circle such as Graco, Raritan, Wilcox Crittenden, Mansfield and Sealand
- Push button flushing for ease and simplicity of operation
- Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch, adaptors, clamps hose and fastening
- Flushing pump self-priming up to 4ft vertical lift
- May be installed 3ft below the waterline
- For installations fitted with vented loops use a solenoid valve on inlet hose
- Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
Fitting:Connections for 5/8" - 3/4" ID inlet hose, 1" - 1-1/2" ID outlet Hose
Size: 13-1/4" long x 8-1/4" wide x 3-1/4" high
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Specifications:
- Inlet Size: 5/8" or 3/4"
- Outlet Size: 1" or 1-1/2"
- Suction Lift (ft.): 4'
- Volts: 12v
- Type: Misc
- Box Dimensions: 4"H x 9"W x 15"L WT: 8 lbs
- UPC: 671880032414
Owner's Manual (pdf)
