Description

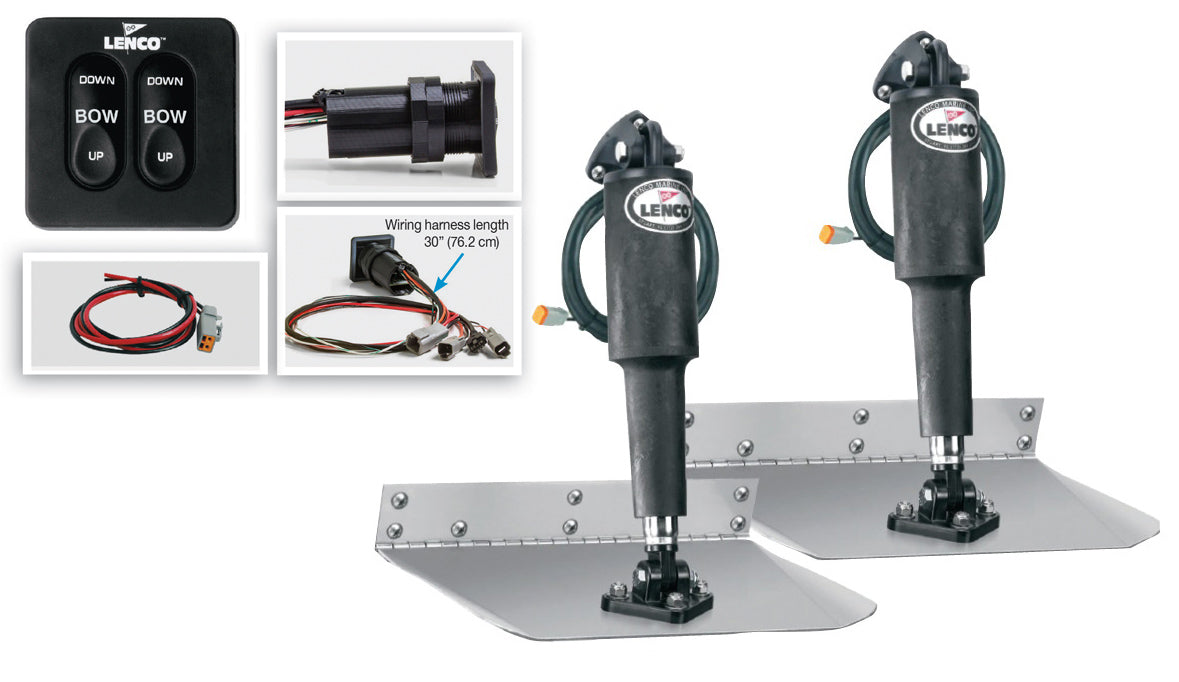

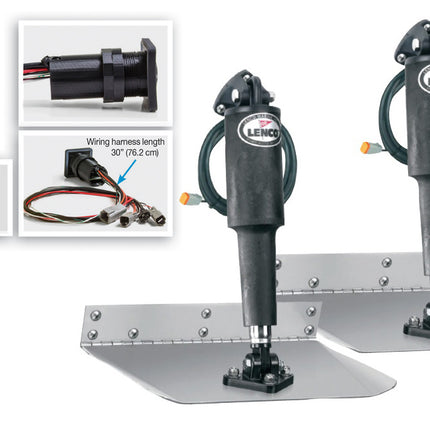

Lenco 9" X 12" Standard Mount Kit 12v with Standard Integrated Switch
Model: 15104-102
Everything you need in one box! The Standard trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 16’ (4.9 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.
What's in the Box:
- (2) 12-gauge stainless steel standard finish blades
- (2) 15054-001 actuators with 6’ (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
- Standard Integrated Switch
