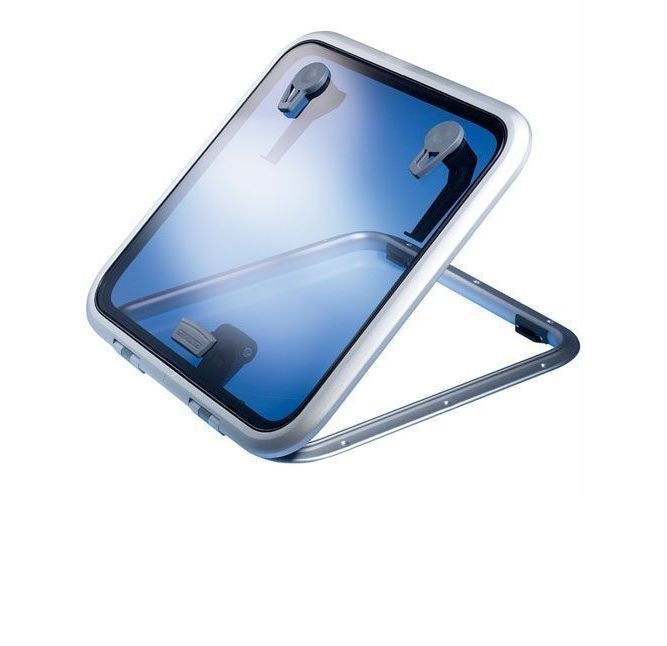

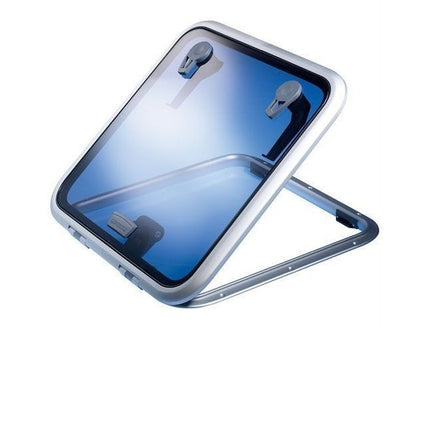

Lewmar Size 41 Low Profile Hatch Flange Base

Description

Description

Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
Self Supporting 9/16 Smoke Grey 5.5 5/16

Dimensions

Length X (in) Width Y (in) Height Z (in) Radii R (in) Cut-Out Length X1 (in) Cut-Out Width Y1 (in) Cut-Out Radii R1 (in)
9 11/16 19 5/16 1 2 7/8 6 15/16 16 9/16 1 11/16

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Lewmar Size 41 Low Profile Hatch Flange Base

Low stock counter image  Available  2       Order Now!

Product form

$448.13

 More payment options

    Checkout securely with

    Description

    Description

    Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
    Self Supporting 9/16 Smoke Grey 5.5 5/16

    Dimensions

    Length X (in) Width Y (in) Height Z (in) Radii R (in) Cut-Out Length X1 (in) Cut-Out Width Y1 (in) Cut-Out Radii R1 (in)
    9 11/16 19 5/16 1 2 7/8 6 15/16 16 9/16 1 11/16

    Mounting Instructions
    Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
