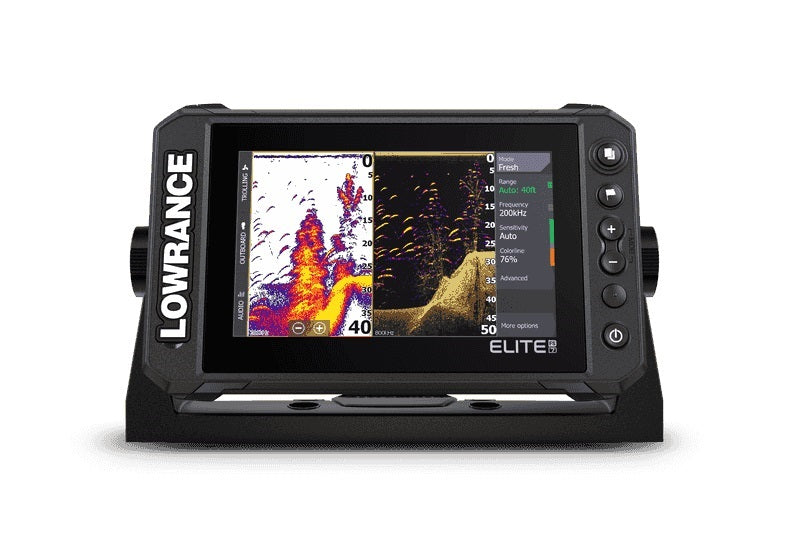

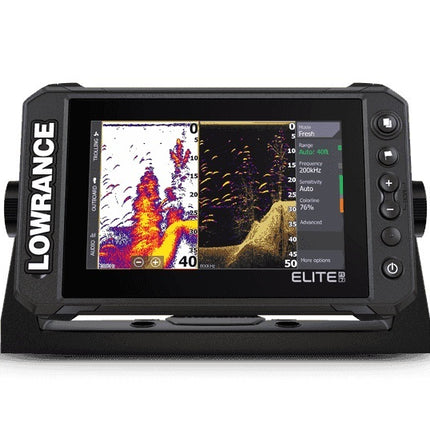

The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts
| Environmental |
| Operating temperature range |
-15°C to +55°C (5°F to 131°F) |
| Storage temperature |
-20°C to +60°C (4°F to 140°F) |
| Waterproof rating |
IPX6 and IPX7 |
| Electrical |
| Supply voltage |
12 V DC (10 - 17 V DC min - max) |
| Recommended fuse rating |
3 A |
| Power consumption (maximum) |
28 W (2 A at 13.8 V DC) |
| Display |
| Resolution |
800 x 480 pixels |
| Viewing angles in degrees |
50° top, 60° bottom, 70° left and right |
| Brightness |
> 1200 nits |
| Touch screen |
Multitouch |
| Physical |
| Weight (display only) |
0.9 kg (1.9 lbs.) |
| Compass Safe Distance |
0.5 m (1.6 ft.) |
| Interface/Connectivity |
| NMEA 2000® |
1 port (Micro-C connector) |
| Data card reader |
1x slot (microSD, SDXC) |
| Ethernet |
1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar |
1 port (9-pin connector) |
| WiFI Internal |
802.11b/g/n : No wireless networking between units |
| Bluetooth® |
4.0 with support for Bluetooth® Classic |
| GPS |
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
