Description

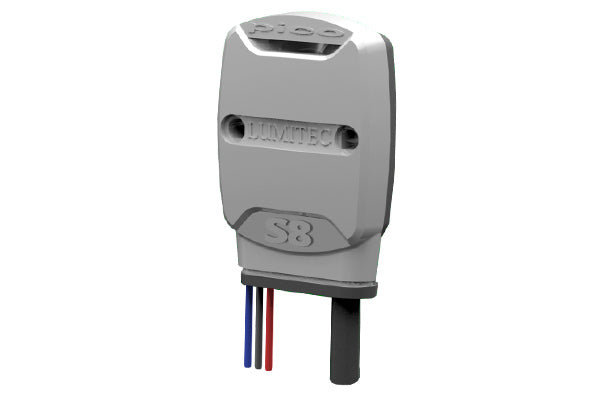

Lumitec Pico S8 Module
Model: 101684
Pico Expansion Modules extend the power and reach of the Poco Digital Lighting Control system making it possible to control other manufacturers’ luminaires, lighting accessories and devices that do not have the sophisticated PLI technology built-in. The Pico S8 module provides the ability to assign Poco virtual switch commands to physical mechanical switches (8 max). This means that your MFD can remain on a dedicated screen, or even be turned off, and a physical switch will activate the virtual switch command through the Poco module. Requires Poco 3 for compatibility (S8 module is not compatible with all earlier versions of the Poco module).
Specifications
| Voltage |
10-30vDC |
| 12v DC Amps |
0.1 amp max |
| Op. Temp F/C |
-31/35 to + 131/55 |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Height |
2.6 in (6.60cm) |
| Width |
1.9 in (4.82cm) |
| Depth |
0.52 in (1.32cm) |
Available 7 Order Now!
