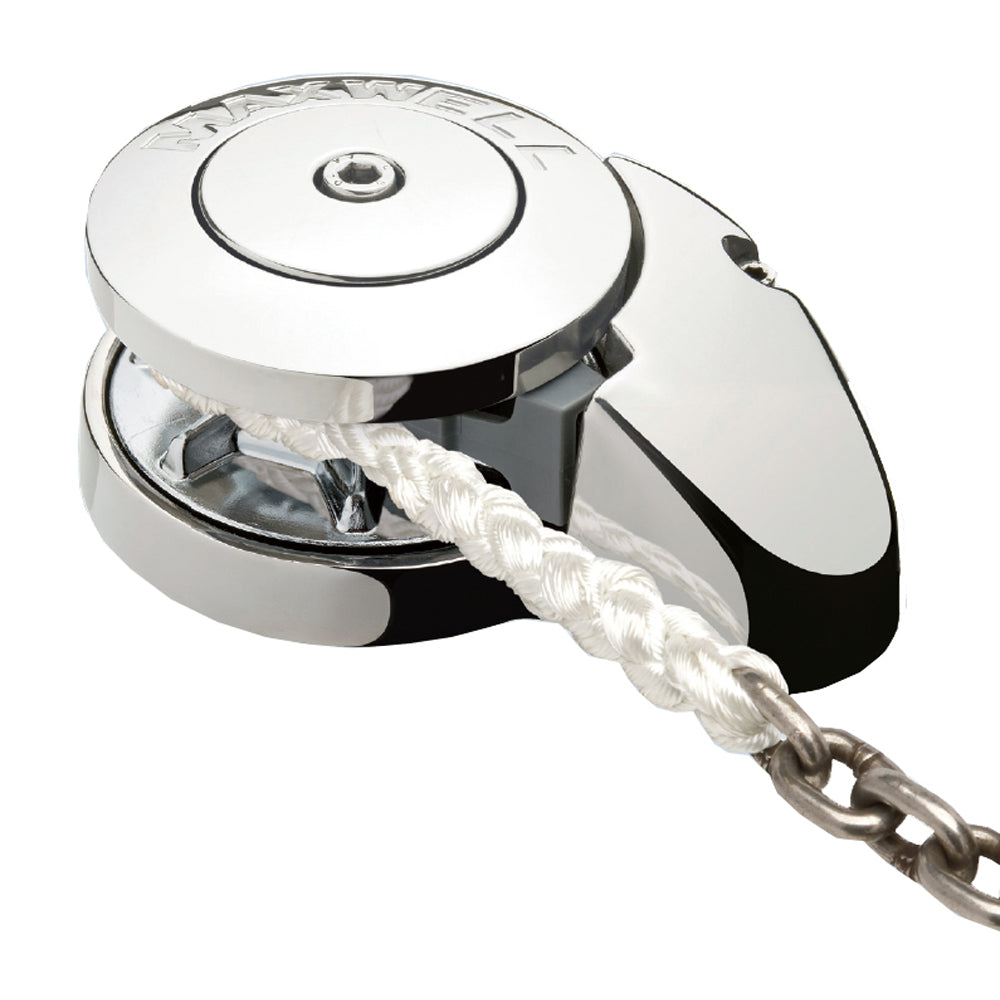

Maxwell RC6 12V Windlass - 500W f/1/4 Chain to 1/2 Rope [RC612V]

Description

  • The RC6 utilizes 6mm/7mm (1/4") chain spliced to 12mm (1/2") three strand or 8-plait rope.
  • Maximum Pull: 660lbs.
  • Providing most of the features of the larger RC8, the RC6 has been designed with the smaller, trailer boat market in mind.
  • The in-line, vertical gearbox and motor means quick and easy installation by either the boat yard or the DIY aftermarket customer.
  • An inexpensive, high performance and great looking windlass: the RC6 is built for durability and years of trouble free use.
  • The RC6 is available only as a low profile unit (no optional capstan drum).

    Kits include:windlass , an on/off breaker panel, a reversing soleniod, an up/down panel switch and a handle.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

    Specifications:

    • Chain - Diameter (Inches): 1/4"
    • Rope Diameter (Inches): 1/2"
    • Vertical/Horizontal: Vertical
    • Box Dimensions: 10"H x 15"W x 15"L WT: 25 lbs
    • UPC: 1000000004816

    Brochure (pdf)

Maxwell RC6 12V Windlass - 500W f/1/4 Chain to 1/2 Rope [RC612V]

Product form

$1,189.99

    Description

    • The RC6 utilizes 6mm/7mm (1/4") chain spliced to 12mm (1/2") three strand or 8-plait rope.
    • Maximum Pull: 660lbs.
    • Providing most of the features of the larger RC8, the RC6 has been designed with the smaller, trailer boat market in mind.
    • The in-line, vertical gearbox and motor means quick and easy installation by either the boat yard or the DIY aftermarket customer.
    • An inexpensive, high performance and great looking windlass: the RC6 is built for durability and years of trouble free use.
    • The RC6 is available only as a low profile unit (no optional capstan drum).

      Kits include:windlass , an on/off breaker panel, a reversing soleniod, an up/down panel switch and a handle.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

      Specifications:

      • Chain - Diameter (Inches): 1/4"
      • Rope Diameter (Inches): 1/2"
      • Vertical/Horizontal: Vertical
      • Box Dimensions: 10"H x 15"W x 15"L WT: 25 lbs
      • UPC: 1000000004816

      Brochure (pdf)
