| Supply voltage (Using VCM100) |
Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) |
95 Watts |
| Power consumption (max) |
195 Watts |
| Power consumption (standby) |
28 Watts |
| Maximum range scale |
96 nm |
| Boot up time |
40 seconds |
| Standby to transmit |
less than 5 seconds |
| Waterproof rating |
IPX6 |
| Operating temperature range |
-25°C to +55°C (-13°F to 131°F) |
| Humidity |
Up to 93% at 40°C (104°F) |
| Maximum wind speed |
100 Kts |
| Power connection |
1x Power connector |
| Data connection |
1x RayNet connector |
| Transmitter frequency |
9370, 9400, 9430 MHz (User Selectable) |
| Peak power output |
110 Watts |
| Receiver characteristic |
Linear |
| Receiver noise |
Less than 5 dB |

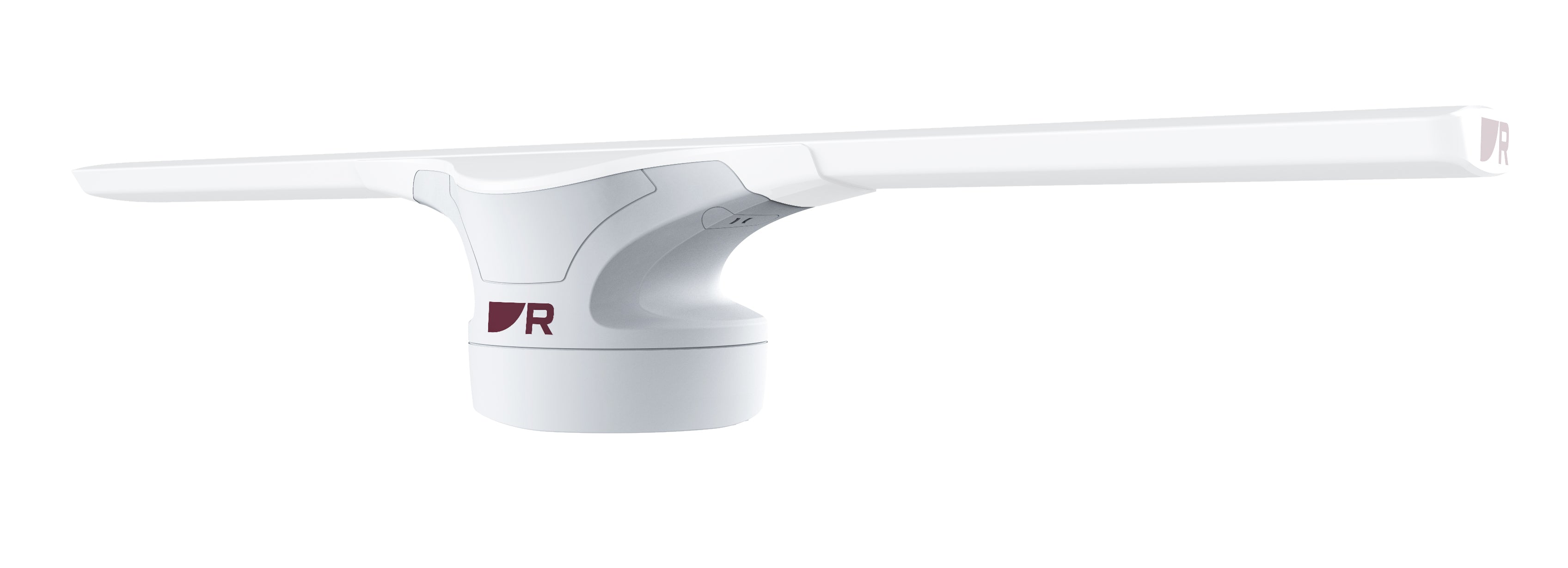

| Pedestal |
| Dimensions |
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight |
16 Kg |
