Description

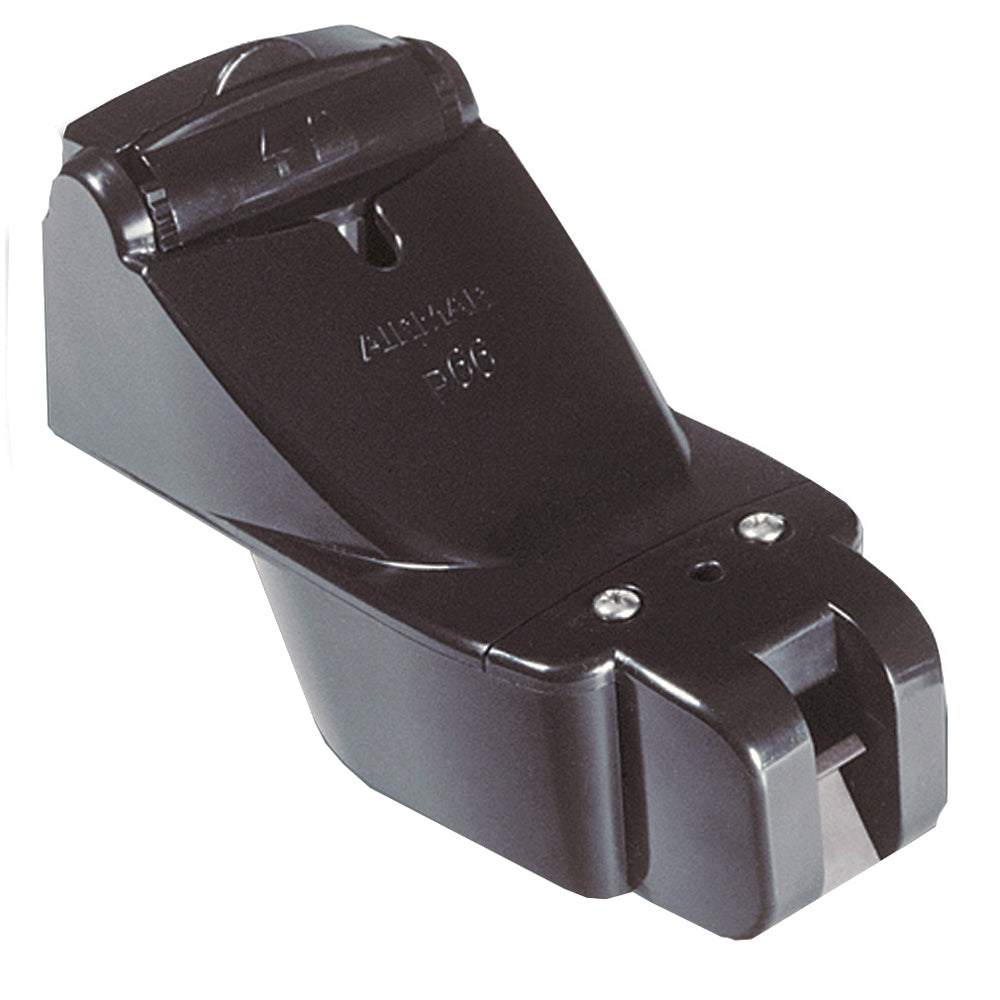

Optional High Speed Transom Mount Transducer
600 Watt Optional High Speed transom mount transducer with depth speed and temperature. Dual Frequency 200/50 KHz. (P66)
Compatible with the following Echo Sounders:
SL Series: SL755RC, SL760RC , SL1250, and SL1250RC
hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC
hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC
Compatible hull material: metal, wood and fiberglass
Max Power: 600 W
Frequency: 200/50 kHz
Beam Angles: 200 kHz 11 50 kHz 45
Features:
30ft (10m) Cable
Replaceable paddle wheel assembly
**requires E66066 adapter cable to go the Raymarine a,c,e,eS Series
Specifications:
- Temperature: Yes
- Speed Included: Yes
- Mounting Style: Transom
- Imagining: Standard
- Chirp: No
- Cable Length (Feet): 30'
- Box Dimensions: 5"H x 7"W x 10"L WT: 2.8 lbs
- UPC: 801769004328
Owner's Manual (pdf)Brochure (pdf)
