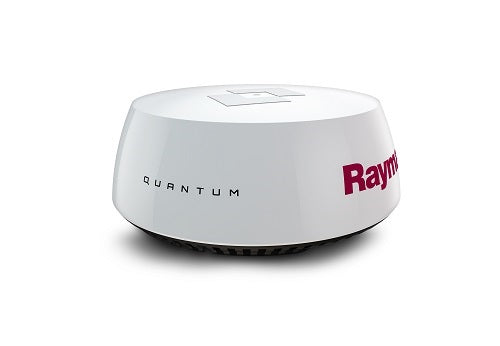

Raymarine Quantum Q24C 18" CHIRP Radar, WiFi and Cabled capable
Model: E70210
UPC: 723193783931
Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.
Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
Superior Radar Imaging
FLIR’s exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality
CHIRP Pulse Compression
Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges
Small Target Detection
Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.
Immediate Awareness
Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.
Simplified Installation
Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum’s small diameter power cable is easy to route through tight spaces. Easy to upgrade — Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables
Energy Efficient and Lightweight Design
Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum’s low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail
Specifications
| Input voltage |
12 or 24 Vdc (Min: 10.8V, Max: 31.2 V) |
| Networking |
Wi-Fi or wired Ethernet (RayNet) |
| Antenna type |
Patch Array |
| Power consumption |
Transmit mode 17W; standby mode 7W; sleep mode 2W |
| Range |
Scales From 1/16 to 24 nautical miles |
| transmit frequency |
9354 to 9446 MHz |
| Peak power output |
20w |
| Duplexer |
Circulator |
| Pulse Widths |
40 ns to 14.7 ?s |
| CHIRP Lengths |
400 ns to 20 ?s |
| CHIRP Bandwidth |
Up to 32 MHz |
| IF Bandwidth |
26 MHz |
| Noise |
Less than 4 dB |
| Max. Range Scale |
from 1/16 to 24 nautical miles |
| Beamwidth (nominal) |
4.9 horizontal and 20 vertical |
| Polarisation |
Horizontal |
| Waterproofing |
IPX6 |
| Weight |
5.6 kg (12.3 lb) |
What's in the Box:
- Quantum radome
- 10m power cable
- 4 - M8 bolts with flat and spring washers
- Documentation pack
