Description

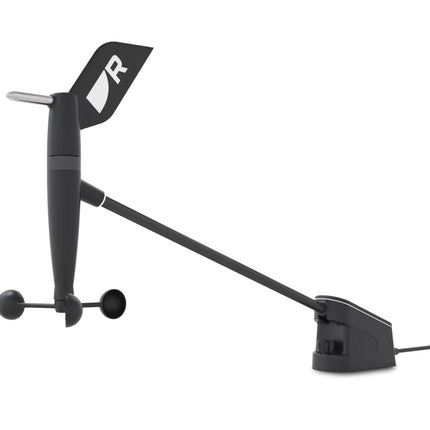

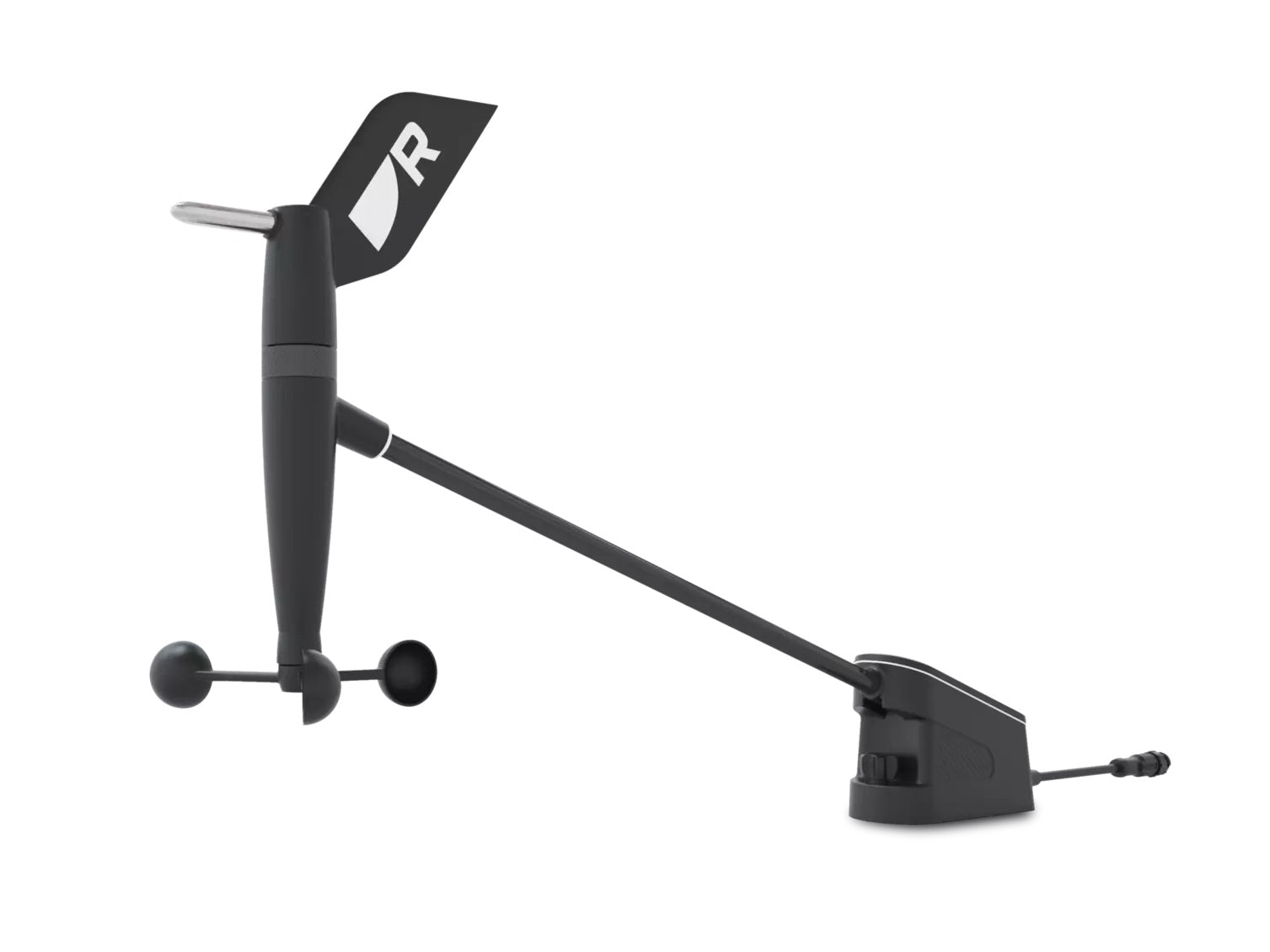

Raymarine RSW Wired, Smart Wind transducer with 30m Cable
Model: E70670
- Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.
- Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.
- Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.
The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.
Specifications
| Length |
Wind transducer (including cable): 657.762 mm (25.90 in) |
| Width |
Wind transducer: 46.96 mm (1.85 in) |
| Height |
Wind transducer: 305.86 mm (12.04 in) |
| Power |
| Nominal supply voltage |
12 V dc (via SeaTalk NG) |
| Operating voltage range |
9 V to 16 V dc |
| Power Consumption |
< 100 mW |
| Fuse rating |
Ensure that the SeaTalk NG backbone is protected by a 5 A fuse |
| NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: |
1 |
| Environmental |
| Operating temperature range |
-25°C to +55°C (-13°F to +131°F) |
| Storage temperature range |
-30°C to +70°C (-22°F to +158°F) |
| Relative humidity |
Masthead: 100% |
| Waterproof rating |
Wind transducer: IPx6/IPx7 |
| Wind |
115 mph (185 kph) |
| Vibration |
EN 60945:2002 (exposed) |
What's in the Box:
- No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
- No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
- 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
- Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
- Mast cable, 30 m (98.43 ft) reel
- Documentation
- Wind transducer
- Smart wind wired gateway
- SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)
