Description

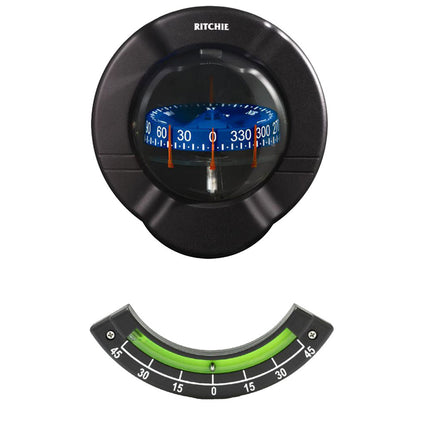

Venture Bulkhead Combidial Compass
The Venture SR-2 is designed primarily for sailboats 16' (4.88M) to 36' (10.68M) in length.
Features:
- 3 3/4″ (95 mm) CombiDial
- 4 5/8″ (118 mm) to 4 13/16″ (122 mm) mounting hole
- Vertical Mounting Angle Through 40 Degrees.
- Blue LED Night Lighting (12 – 24 Volts)
- INC-45 (Inclinometer) Included
- Protective Front and Back Covers Included
- Exclusive 5-Year Ritchie Warranty
- Wheelmark Certified
Approx. Shipping Weight: 2 lb. (907g)
Notes:
12/24v lighting is standard
Specifications:
- Read: Both
- Mounting Style: Bulkhead
- Backlight: Yes
- Lubber Lines: Yes
- Box Dimensions: 7"H x 8"W x 8"L WT: 2.5 lbs
- UPC: 010342110008
Quick Guide (pdf)Owner's Manual (pdf)
