DS6-P Vertical Cable Seal
Scanstrut premium IP68 waterproof cable seal provides easy-fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables.
Features:
- Watertight installation - 100% waterproof with an IP68 rating
- Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
- No Need to Remove Cable Connectors - split-seal option does not require connector removal during installation.
- Multi-Functional Dome Shape - the aesthetic dome-shaped profile provides a stronger, impact-resistant design and the outer dome provides an additional water shield.

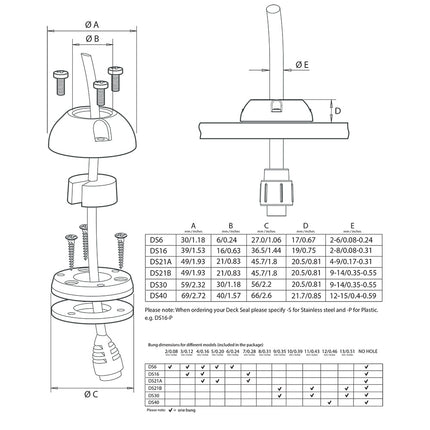

Technical Specifications:
- Fits cable size (diameter) - .08" to .24" (2 - 6 mm)
- Fits connector size up to .24" (6 mm) in diameter
- Height - .67" (17 mm)
- Color - Grey
- Orientation - Vertical
- Material - ASA Plastic

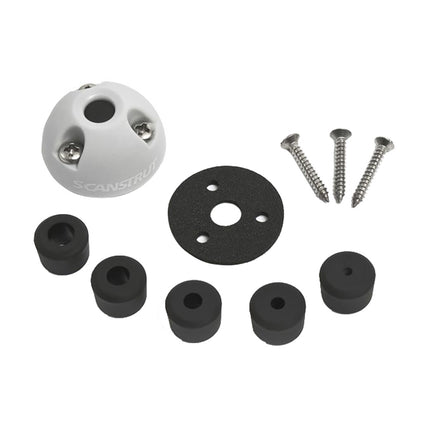

In the Box:
- Cable seal
- Mounting hardware
- Installation manual
*Sold as an Individual
Specifications:
- Type: Deck Seal
- Box Dimensions: 1"H x 4"W x 8"L WT: 0.3 lbs
- UPC: 5060114794924
Quick Guide (pdf)Brochure (pdf)
