Description

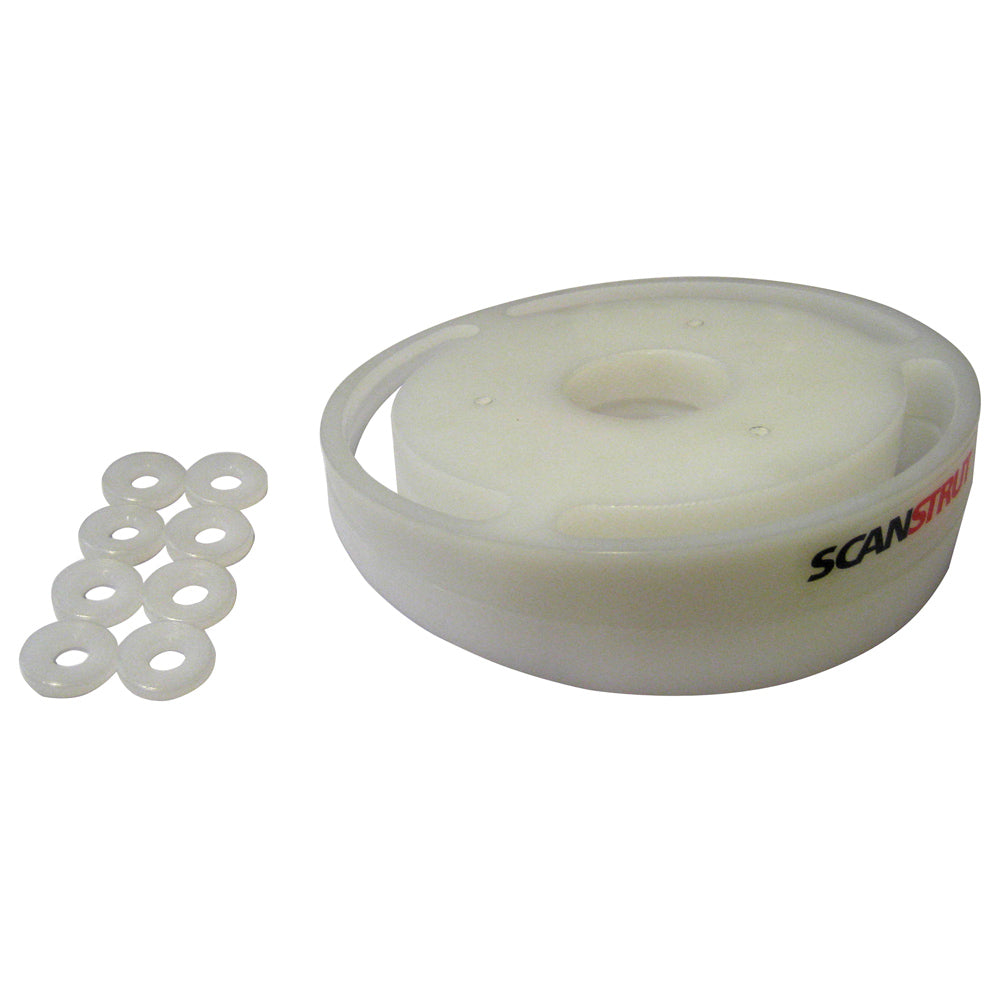

SC50 Adjustable Wedge for Satcom Mounts
Designed to work with Scanstrut satcom mounts, you can quickly and easily provide a level mounting surface on any boat.
Satcom antennas require a horizontal mounting surface to function correctly. Finding this on any powerboat is often difficult. This satcom wedge, eradicates this problem by providing a level mounting surface on slopes from 0° to 12°.
Compatible with:
- SC35, SC45, SC45R and SC65 satcom mount
Features:
- Ingenious yet simple – simply counter-rotate the angled discs until the top surface is horizontal
- A channel system inside the discs allows un-restricted positioning of the antenna mounting bolts
- 4 pairs of 6° angled washers provide a level fastening surface for the antenna mounting bolts
- Watertight base seals fitted
Technical Specifications:
- Material - Marine grade polymer
In the Box:
- Counter-rotating angled discs 0° to 12° x 2
- 6° angled washers x 4
- Mount seal
- Instruction manual
*Sold as an Individual
Specifications:
- Construction: Polymer
- Type: Wedges
- Height: N/A
- Box Dimensions: 2"H x 8"W x 9"L WT: 1.45 lbs
- UPC: 5060114790506
Quick Guide (pdf)
