Description

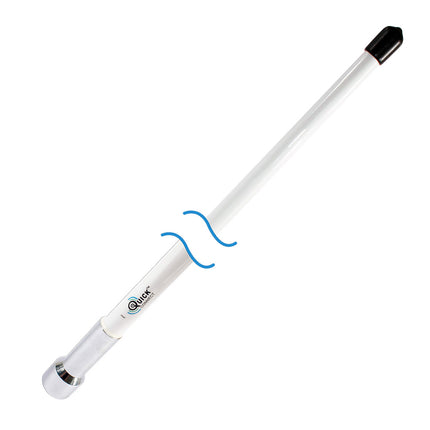

VHF 4' QuickConnect™ 3dB for QCM Series Mounts
QuickConnect™ antennas stem from the popularity of the quick connecting feature on Shakespeare's high-end Phase III® marine antennas, the QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a more affordable line-up.
Features:
- QuickConnect™ System - Screw or unscrew the antenna to disconnect or connect
- Splash Protection Cap - Protects the connector on the mount when the antenna is disconnected
- Centerpin® PL-259 Connector - An easy crimp-on connector
- Base connector included for use with QuickConnect™ mounts only
- Single Section antennas with VSWR of <1.5:1 at 156.8 MHz
- Maximum input power of 50W
- The bandwidth of 5 MHz within 2.0:1 VSWR
- Does not contain a built-in DC ground connection
Specifications:
- Antenna Band: VHF
- Color: White
- Construction: Fiberglass
- Length (Inches): 48"
- Box Dimensions: 3"H x 3"W x 54"L WT: 2.3 lbs
- UPC: 719441173104
