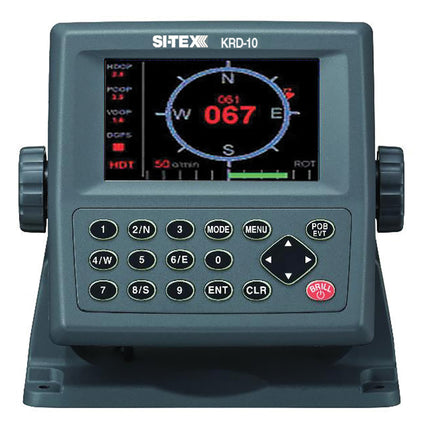

SI-TEX Color LCD NMEA 0183 Repeater [KRD-10]

Description

Color LCD NMEA 0183 Repeater

Features:

  • Maximum performance and simple setup
  • Clear 4.3" Color LCD Display that is viewable even in the harshest sunlight conditions
  • Bonded color LCD ensuring condensation free operation as well as great visibility
  • Utilizing NMEA-0183 interface external sensors can easily be connected for simple and reliable operation
  • 18 Different Display Modes
  • Converts from L/L to Loran C, Loran A, & Decca LOPs
  • Track Plotter features 10,000-point, 100 Route, & 3,000 track point memory
  • Low 4.5-watt power consumption, 10.8 to 31.2 VDC power supply
  • Very easily flush mounted

Specifications:

  • SI-TEX Model KRD-10
  • Display: 4.3" color LCD
  • Display Resolution: 480 x 272 pixels (WQVGA)
  • Display Mode: Compass, Rate of turn, Rudder Angle, Navigation, Plotter, Water Temperature, Highway, Weather Info,
  • Standard Input & Output: NMEA-0183 versions 1.5, 2.0, 3.0
  • Nominal Voltage: 10.8 to 31.2 VDC
  • Water Protection: IPX6
  • Dimensions: 5.75" W x 5.75" H x 2.75" D

In the Box:

  • KRD-10 Display with Mounting Bracket, Knobs, Sun Cover
  • Power Cable & NMEA Interface Cable
  • Operation Manual

18 Functions Including:

  • NAVIGATION
  • STEERING
  • HIGHWAY
  • DEPTH
  • WATER TEMPERATURE
  • WIND
  • HEADING
  • COURSE
  • RATE OF TURN
  • POSITION
  • CURRENT
  • WEATHER DATA

Specifications:

  • Screen Size: 4.3"
  • Shape: Rectangular
  • Box Dimensions: 8"H x 10"W x 14"L WT: 5.65 lbs
  • UPC: 010407340449

Brochure (pdf)

SI-TEX Color LCD NMEA 0183 Repeater [KRD-10]

Product form

$664.99

    Description

    Color LCD NMEA 0183 Repeater

    Features:

    • Maximum performance and simple setup
    • Clear 4.3" Color LCD Display that is viewable even in the harshest sunlight conditions
    • Bonded color LCD ensuring condensation free operation as well as great visibility
    • Utilizing NMEA-0183 interface external sensors can easily be connected for simple and reliable operation
    • 18 Different Display Modes
    • Converts from L/L to Loran C, Loran A, & Decca LOPs
    • Track Plotter features 10,000-point, 100 Route, & 3,000 track point memory
    • Low 4.5-watt power consumption, 10.8 to 31.2 VDC power supply
    • Very easily flush mounted

    Specifications:

    • SI-TEX Model KRD-10
    • Display: 4.3" color LCD
    • Display Resolution: 480 x 272 pixels (WQVGA)
    • Display Mode: Compass, Rate of turn, Rudder Angle, Navigation, Plotter, Water Temperature, Highway, Weather Info,
    • Standard Input & Output: NMEA-0183 versions 1.5, 2.0, 3.0
    • Nominal Voltage: 10.8 to 31.2 VDC
    • Water Protection: IPX6
    • Dimensions: 5.75" W x 5.75" H x 2.75" D

    In the Box:

    • KRD-10 Display with Mounting Bracket, Knobs, Sun Cover
    • Power Cable & NMEA Interface Cable
    • Operation Manual

    18 Functions Including:

    • NAVIGATION
    • STEERING
    • HIGHWAY
    • DEPTH
    • WATER TEMPERATURE
    • WIND
    • HEADING
    • COURSE
    • RATE OF TURN
    • POSITION
    • CURRENT
    • WEATHER DATA

    Specifications:

    • Screen Size: 4.3"
    • Shape: Rectangular
    • Box Dimensions: 8"H x 10"W x 14"L WT: 5.65 lbs
    • UPC: 010407340449

    Brochure (pdf)
