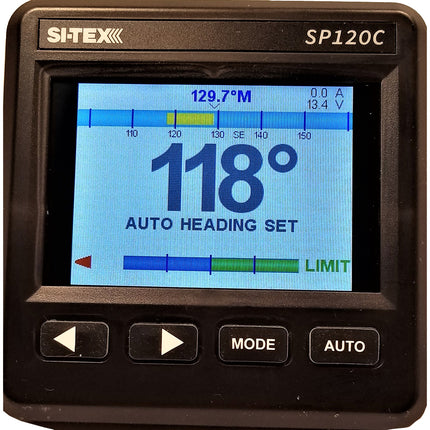

SI-TEX SP-120 Color System w/Rudder Feedback 18CI Pump [SP120C-RF-2]

Description

SP-120 Color System with Rudder Feedback & 18CI Pump

Features:

  • The SI-TEX SP-120C is an Autopilot designed for hydraulic steering, mechanical steering, & solenoid control
  • Does not require a separate junction box, everything simply connects to the rear of the control head
  • This Autopilot is ideal for small vessels under 38'
  • The Autopilot can operate in either Virtual Rudder feedback mode in the case of Outboards or a separate Rudder Feedback unit can be added for inboard vessels
  • SP-120C displays actual Compass heading & Selected Heading, along with Rudder Angle Displays simultaneously
  • Compact 4.1” x 4.1” Splash proof Control head with large easy to read Color LCD LCD Display
  • Extremely easy to select your desired headings, operate, and setup, with new user friendly software
  • High performance 9 Axis Rate Gyro Compass provides the autopilot with excellent steering response
  • Autopilot uses Input of GPS Speed over ground (SOG) and Course over ground (COG) to
  • enhance performance
  • NMEA-0183 GPS Interface accepts inputs from most Chart plotters for steering to waypoints and routes
  • NMEA-0183 Output of Compass heading at 10kHz for interface to MFD’s with Chart/Radar Overlay
  • Autopilot Steering Modes:
  • Manual (Power Steer)
  • Auto (Pilot maintains selected Magnetic course)
  • GPS (Steers to Waypoint or Routes when Interfaced with GPS)
  • Wind (Steers to wind when interfaced to wind sensor for Sailboat installations)
  • Protected by 2 Year SI-TEX Warranty

Specifications:

  • Waterproof: IPX6
  • Control Head Dimensions: 110 mm L x 110 mm W
  • Voltage supply VOLTAGE: 12/24 Volts DC
  • LCD Color LCD Display
  • Constant Compass Heading Indicator and Rudder Angle Indicator
  • Current consumption: 0.5 amps at 12VDC in standby mode
  • Maximum Drive Output Current 15 Amps
  • Operating temperature: -10ºC to +55ºC
  • Data Connections: NMEA-0183 GPS Input, NMEA-0183 10kHz Compass heading Output
  • Course Detection <1 Degree

Package Includes:

  • SI-TEX SP-120C Color LCD Autopilot Control Head
  • NMEA Interface Cables
  • 9 Axis Electronic Rate Gyro Compass
  • Control Head Sun cover
  • Product manual
  • Mounting Screws

Brochure (pdf)

SI-TEX SP-120 Color System w/Rudder Feedback 18CI Pump [SP120C-RF-2]

Product form

$3,199.00 $2,765.99
