Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8" [65461]

Description

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"

Features:

  • Fully drop-forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • Complete water-tightness thanks to the resistant rubber collar (black color)
  • Easy installation (no need to use a waterproof sealant)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 60 nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Color: Black
  • Working load: (lb) 14100 / (kg) 6400
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 0.827 / (g) 375

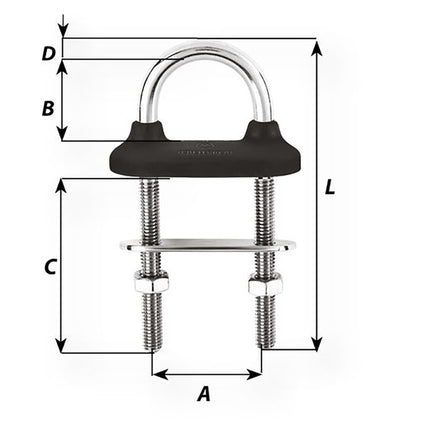

Dimensions:

  • Length: (inch) 5 1/8" / (mm) 130
  • A: (inch) 1 47/64" / (mm) 44
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 2 3/4" / (mm) 70
  • D diameter: (inch) 15/32" / (mm) 12

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
