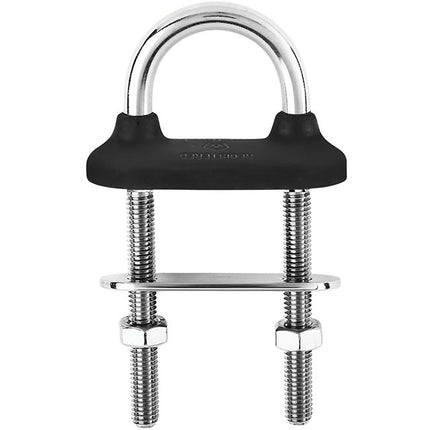

Wichard Black Watertight U-bolt - 5mm Diameter - 13/64" - 60mm Length - 2-23/64" [65321]

Description

Black Watertight U-bolt - 5mm Diameter - 13/64" - 60mm Length - 2-23/64"

Features:

  • Fully drop-forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • Complete water-tightness thanks to the resistant rubber collar (black color)
  • Easy installation (no need to use a waterproof sealant)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 4.5 nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Color: Black
  • Working load: (lb) 1410 / (kg) 640
  • Breaking load: (lb) 4400 / (kg) 2000
  • Weight: (lb) 0.077 / (g) 35

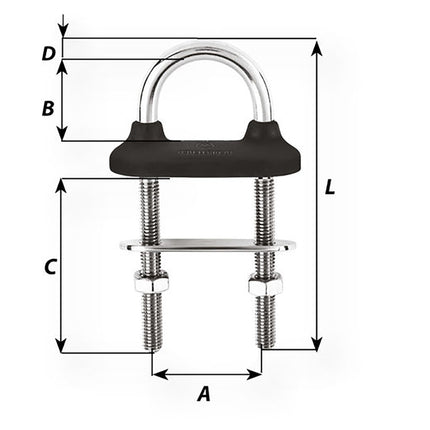

Dimensions:

  • Length: (inch) 2 23/64" / (mm) 60
  • A: (inch) 1 7/64" / (mm) 28
  • B: (inch) 53/64" / (mm) 21
  • C: (inch) 1 3/16" / (mm) 30
  • D diameter: (inch) 13/64" / (mm) 5

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)

Wichard Black Watertight U-bolt - 5mm Diameter - 13/64" - 60mm Length - 2-23/64" [65321]

Product form

$25.55 $21.72

    Description

    Black Watertight U-bolt - 5mm Diameter - 13/64" - 60mm Length - 2-23/64"

    Features:

    • Fully drop-forged product with high-quality stainless steel
    • Outstanding working and breaking loads
    • Complete water-tightness thanks to the resistant rubber collar (black color)
    • Easy installation (no need to use a waterproof sealant)
    • Delivered with bolts and counter-plate
    • Max tightening torque: 4.5 nm

    Applications:

    • Various fastening applications: shrouds, lifelines, blocks…

    Specifications:

    • Materials: 316L stainless steel grade
    • Color: Black
    • Working load: (lb) 1410 / (kg) 640
    • Breaking load: (lb) 4400 / (kg) 2000
    • Weight: (lb) 0.077 / (g) 35

    Dimensions:

    • Length: (inch) 2 23/64" / (mm) 60
    • A: (inch) 1 7/64" / (mm) 28
    • B: (inch) 53/64" / (mm) 21
    • C: (inch) 1 3/16" / (mm) 30
    • D diameter: (inch) 13/64" / (mm) 5

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
