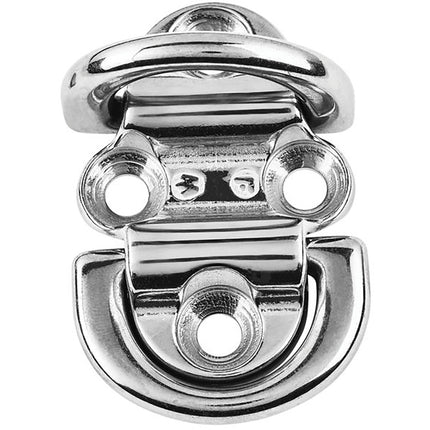

Wichard Double Folding Pad Eye - 10mm Diameter - 25/64" [06566]

Description

Double Folding Pad Eye - 10mm Diameter - 25/64"

Features:

  • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
  • Perfect solution attachment (stay, blocks, jib tack point)
  • Possibility to attach several stays
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates noise and unpleasant vibrations

Applications:

  • For any fastening/attachment application
  • Allows to attach several shrouds

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 10050 / (kg) 4560
  • Breaking load: (lb) 19840 / (kg) 9000
  • Weight: (lb) 1.089 / (g) 494

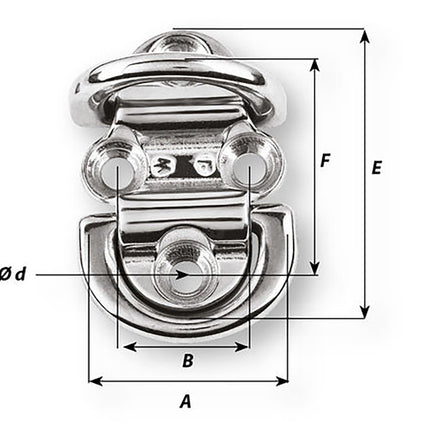

Dimensions:

  • A: (inch) 2 61/64" / (mm) 75
  • B: (inch) 1 49/64" / (mm) 45
  • C: (inch) 29/32" / (mm) 23
  • d diameter: (inch) 13/32" / (mm) 10.5
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 4 3/32" / (mm) 104
  • F: (inch) 3 5/64" / (mm) 78

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)

Wichard Double Folding Pad Eye - 10mm Diameter - 25/64" [06566]

Product form

$292.75 $248.84

    Description

    Double Folding Pad Eye - 10mm Diameter - 25/64"

    Features:

    • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
    • Perfect solution attachment (stay, blocks, jib tack point)
    • Possibility to attach several stays
    • Modern and optimized design to suit the aesthetics of modern boats
    • They can be folded down to minimize the risk of injuries
    • The silicon pad eliminates noise and unpleasant vibrations

    Applications:

    • For any fastening/attachment application
    • Allows to attach several shrouds

    Specifications:

    • Materials: 316L stainless steel grade
    • Working load: (lb) 10050 / (kg) 4560
    • Breaking load: (lb) 19840 / (kg) 9000
    • Weight: (lb) 1.089 / (g) 494

    Dimensions:

    • A: (inch) 2 61/64" / (mm) 75
    • B: (inch) 1 49/64" / (mm) 45
    • C: (inch) 29/32" / (mm) 23
    • d diameter: (inch) 13/32" / (mm) 10.5
    • D diameter: (inch) 25/64" / (mm) 10
    • E: (inch) 4 3/32" / (mm) 104
    • F: (inch) 3 5/64" / (mm) 78

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
