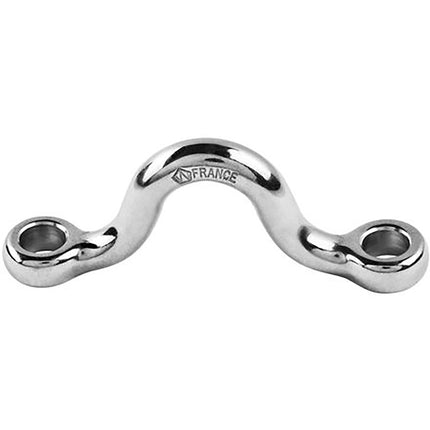

Wichard Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32" [09202]

Description

Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"

Features:

  • Complete range of drop-forged saddles with high-quality stainless steel (316L)
  • Outstanding strength
  • The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

  • Fastening applications
  • Attachment of straps & cordage

Specifications:

  • Materials: 316L stainless steel grade
  • Breaking load: (lb) 3960 / (kg) 1800
  • Weight: (lb) 0.02 / (g) 9

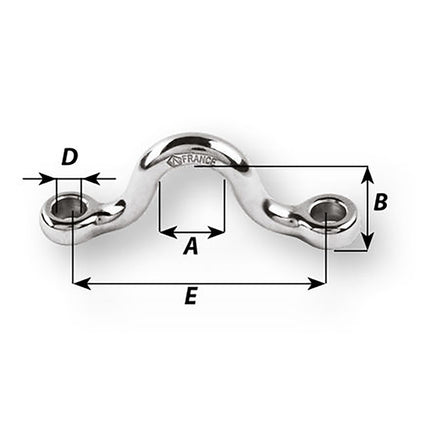

Dimensions:

  • A: (inch) 25/64" / (mm) 10
  • B: (inch) 35/64" / (mm) 14
  • D diameter: (inch) 13/64" / (mm) 5
  • E: (inch) 1 15/32" / (mm) 37.5

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)

Wichard Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32" [09202]

Product form

$12.85 $10.92

    Description

    Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"

    Features:

    • Complete range of drop-forged saddles with high-quality stainless steel (316L)
    • Outstanding strength
    • The round shape reduces the wear of the components connected to them (straps, ropes...)

    Applications:

    • Fastening applications
    • Attachment of straps & cordage

    Specifications:

    • Materials: 316L stainless steel grade
    • Breaking load: (lb) 3960 / (kg) 1800
    • Weight: (lb) 0.02 / (g) 9

    Dimensions:

    • A: (inch) 25/64" / (mm) 10
    • B: (inch) 35/64" / (mm) 14
    • D diameter: (inch) 13/64" / (mm) 5
    • E: (inch) 1 15/32" / (mm) 37.5

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
