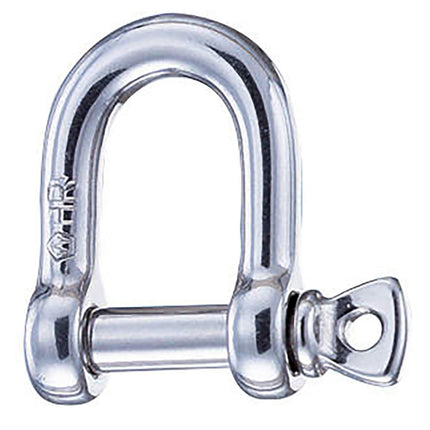

Wichard HR D Shackle - 20mm Diameter - 25/32" [11209]

Description

HR D Shackle - 20mm Diameter - 25/32"

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 19400 / (kg) 8800
  • WLL: (lb) 12340 / (kg) 5600
  • Breaking load: (lb) 61720 / (kg) 28000
  • Weight: (lb) 1.896 / (g) 860

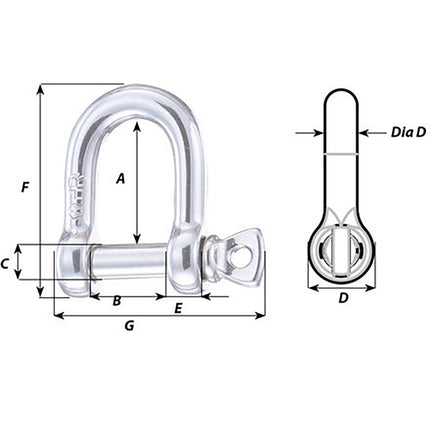

Dimensions:

  • A: (inch) 2 3/4" / (mm) 70
  • B: (inch) 1 37/64" / (mm) 40
  • D diameter: (inch) 25/32" / (mm) 20

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)

Wichard HR D Shackle - 20mm Diameter - 25/32" [11209]

Product form

$615.95 $523.56

    Description

    HR D Shackle - 20mm Diameter - 25/32"

    Features:

    • Forged D shackle in HR stainless steel grade (17,4 PH)
    • Outstanding working and breaking load
    • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking

    Applications:

    • Applications requesting high loads
    • Standard applications of the shackle
    • Attachment applications: blocks, head …
    • Do not use it for mooring applications

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 19400 / (kg) 8800
    • WLL: (lb) 12340 / (kg) 5600
    • Breaking load: (lb) 61720 / (kg) 28000
    • Weight: (lb) 1.896 / (g) 860

    Dimensions:

    • A: (inch) 2 3/4" / (mm) 70
    • B: (inch) 1 37/64" / (mm) 40
    • D diameter: (inch) 25/32" / (mm) 20

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
