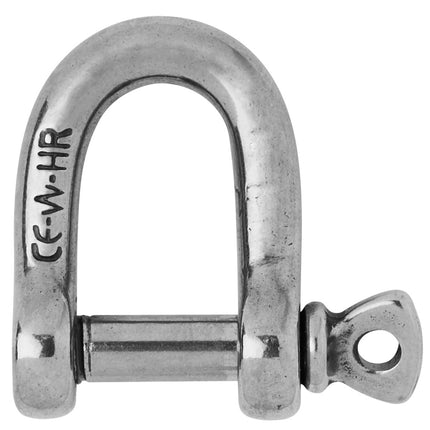

Wichard HR D Shackle - Diameter 15/64" [11203W]

Description

HR D Shackle - Diameter 15/64"

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head
  • Do not use it for mooring applications

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Working load (lb) 2290
  • WLL (lb) 1010
  • Breaking load (lb) 5070
  • Weight (lb) 0.053

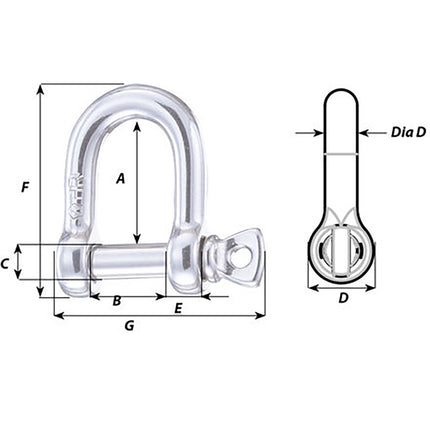

  • A (inch) 25/32"
  • B (inch) 15/32"
  • C (inch) 15/64"
  • D (inch) 5/8"
  • D diameter (inch) 15/64"
  • E (inch) 9/32"
  • F (inch) 1 13/16"
  • G (inch) 1 13/16"

Wichard HR D Shackle - Diameter 15/64" [11203W]

Product form

$55.18

    Description

    HR D Shackle - Diameter 15/64"

    Features:

    • Forged D shackle in HR stainless steel grade (17,4 PH)
    • Outstanding working and breaking load
    • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking and batch number

    Applications

    • Applications requesting high loads
    • Standard applications of the shackle
    • Attachment applications: blocks, head
    • Do not use it for mooring applications

    Specifications:

    • Materials HR 17.4 PH stainless steel grade
    • Working load (lb) 2290
    • WLL (lb) 1010
    • Breaking load (lb) 5070
    • Weight (lb) 0.053
    • A (inch) 25/32"
    • B (inch) 15/32"
    • C (inch) 15/64"
    • D (inch) 5/8"
    • D diameter (inch) 15/64"
    • E (inch) 9/32"
    • F (inch) 1 13/16"
    • G (inch) 1 13/16"
