Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32" [02773]

Description

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 1940 / (kg) 880
  • Breaking load: (lb) 2860 / (kg) 1300
  • Weight: (lb) 0.119 / (g) 54

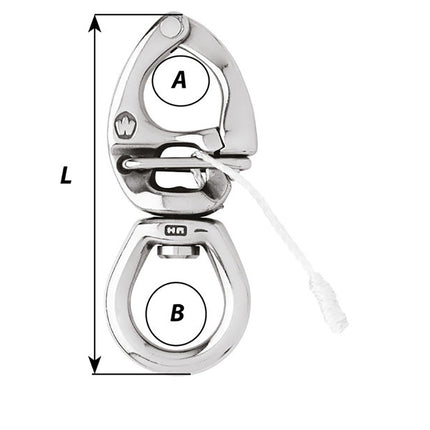

Dimensions:

  • A: (inch) 35/64" / (mm) 14
  • B: (inch) 3/4" / (mm) 19
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)

Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32" [02773]

Product form

$144.35 $122.70

    Description

    HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

    Features:

    • HR forged (17.4 PH) quick-release snap shackle with large bail
    • The opening is made by pulling the lanyard
    • Perfect to attach several lines (spinnaker sheets...)
    • Outstanding working and breaking loads
    • Free rotation of the snap shackle thanks to the swivel

    Applications:

    • For spinnaker operations
    • Perfect to attach several lines: spinnaker sheets...

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 1940 / (kg) 880
    • Breaking load: (lb) 2860 / (kg) 1300
    • Weight: (lb) 0.119 / (g) 54

    Dimensions:

    • A: (inch) 35/64" / (mm) 14
    • B: (inch) 3/4" / (mm) 19
    • Length: (inch) 3 5/32" / (mm) 80

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
