Wichard HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8" [02677]

Description

HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 7050 / (kg) 3200
  • Breaking load: (lb) 13880 / (kg) 6300
  • Weight: (lb) 0.818 / (g) 371

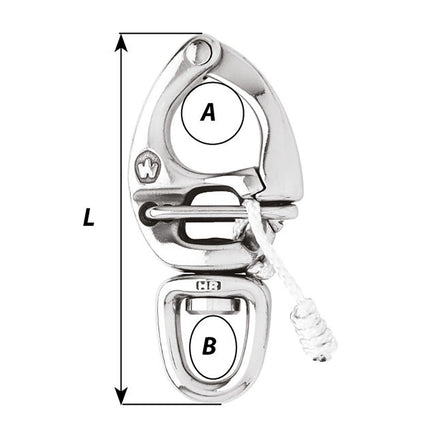

Dimensions:

  • A: (inch) 1 3/16" / (mm) 30
  • B: (inch) 25/32" / (mm) 20
  • Length: (inch) 5 1/8" / (mm) 130

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)

Wichard HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8" [02677]

Product form

$406.35 $345.40

    Description

    HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"

    Features:

    • HR forged (17.4 PH) quick-release snap shackle with swivel eye
    • The opening is made by pulling the lanyard
    • Perfect to attach one sheet or halyard
    • Outstanding working and breaking loads
    • Free rotation of the snap shackle thanks to the swivel

    Applications:

    • For spinnaker operations
    • Perfect for spinnaker sheets and halyards

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 7050 / (kg) 3200
    • Breaking load: (lb) 13880 / (kg) 6300
    • Weight: (lb) 0.818 / (g) 371

    Dimensions:

    • A: (inch) 1 3/16" / (mm) 30
    • B: (inch) 25/32" / (mm) 20
    • Length: (inch) 5 1/8" / (mm) 130

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
