Wichard Marine

Wichard HR Snap Shackle - Large Bail - Length 80mm [02373]

Wichard HR Snap Shackle - Large Bail - Length 80mm [02373]

Regular price $66.99 USD
Regular price $104.30 USD Sale price $66.99 USD
Sale Sold out
Shipping calculated at checkout.

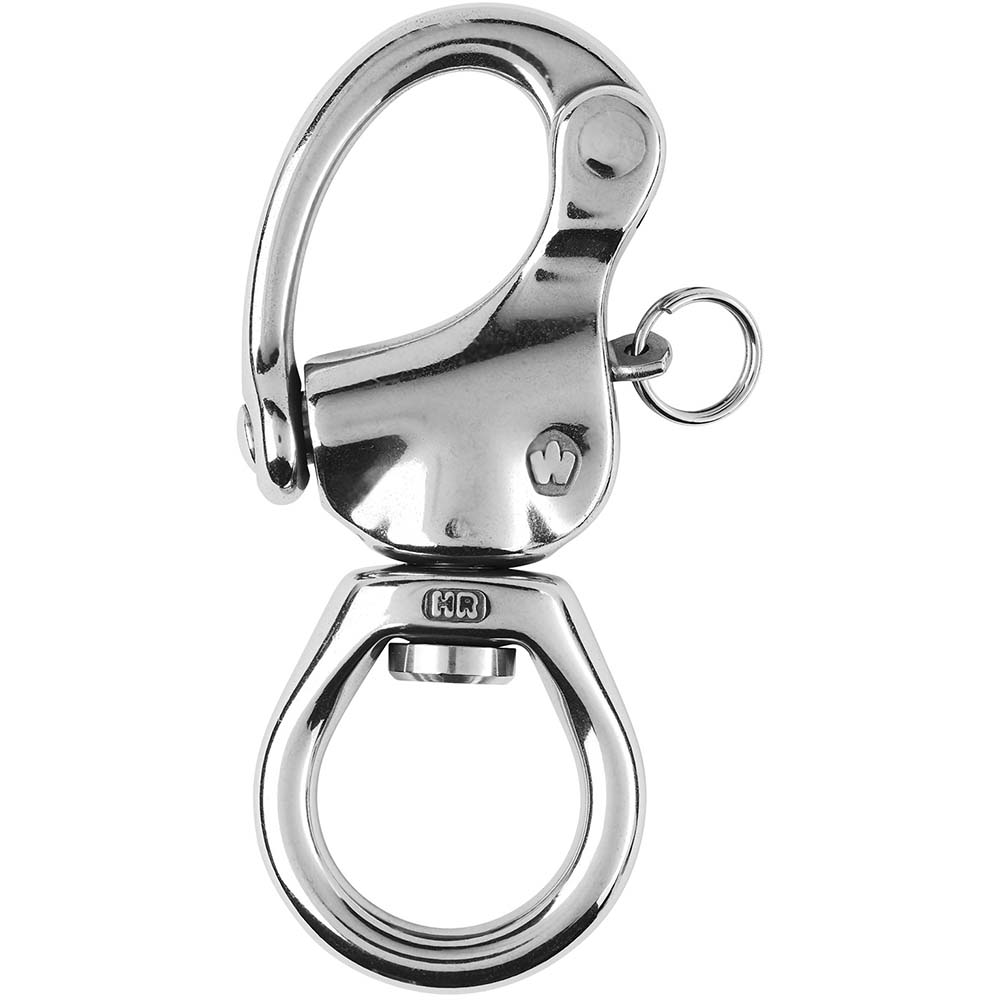

HR Snap Shackle - Large Bail - Length 80mm

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel)  with large eye
  • The large eye allows attaching several ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

  • Snap shackle applications
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Length (inch) 3-5/32"
  • Working load (lb) 2110
  • Breaking load (lb) 4400
  • Weight (lb) 0.154

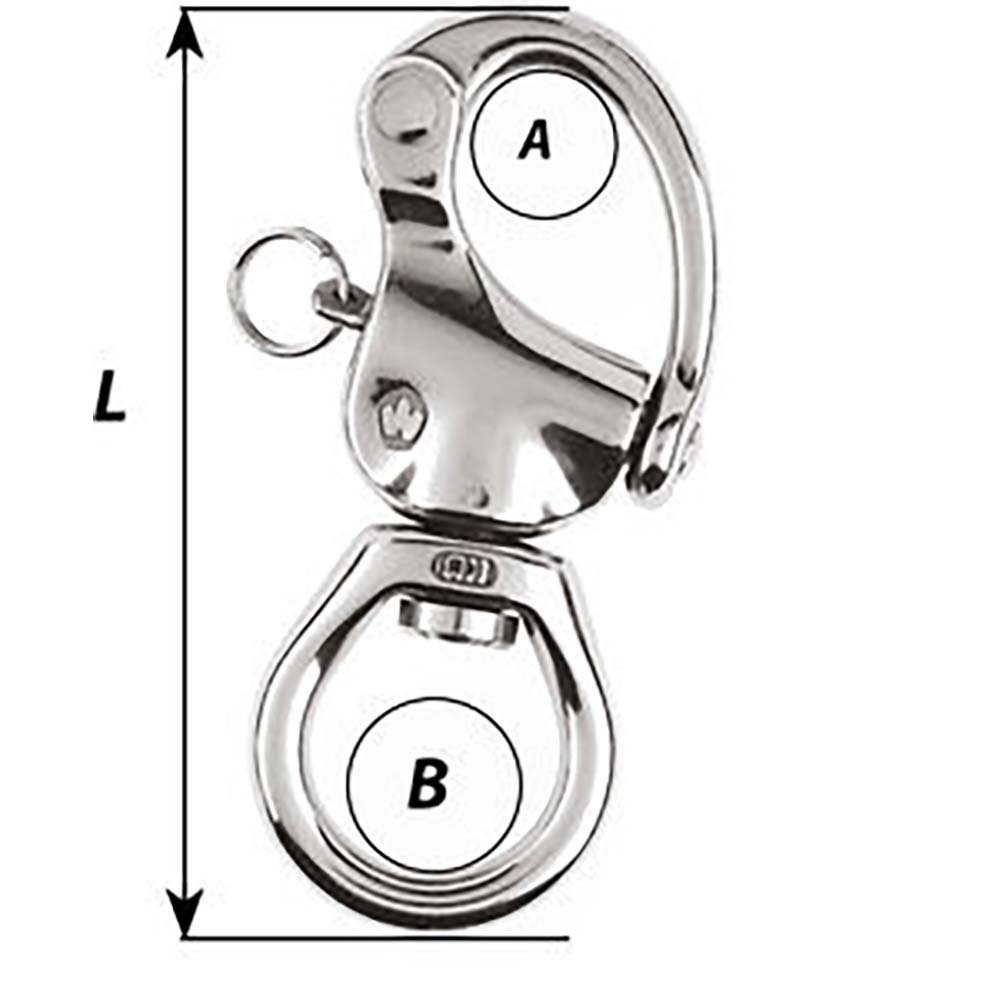

Dimensions (see 2nd image):

  • A (inch) 5/8"
  • B (inch) 3/4"

Materials

Shipping & Returns

Dimensions

Care Instructions

View full details
