Description

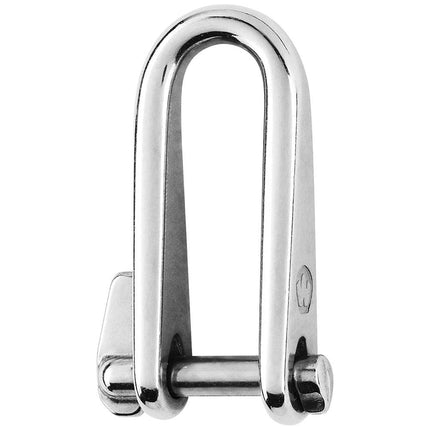

Key Pin Shackle - Diameter 6mm - 1/4"
Features:
- Key pin shackle forged in grade 316L stainless steel
- Opening and closing is done simply by rotating the pin half a turn
- No risk to lose the pin as it remains attached
- Outstanding working and breaking loads
Applications:
- Perfect product for halyards or applications requiring to open/close the shackle often
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1140
- Breaking load (lb) 3300
- Weight (lb) 0.106

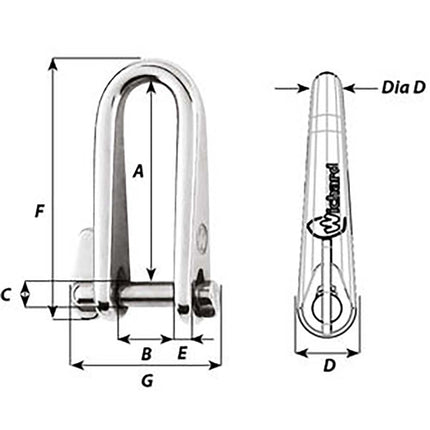

Dimensions (see 2nd image):
- A (inch) 1-49/64"
- B (inch) 5/8"
- C (inch) 15/64"
- D (inch) 33/64"
- D diameter (inch) 15/64"
- E (inch) 5/32"
- F (inch) 2-23/64"
- G (inch) 1-29/64"
