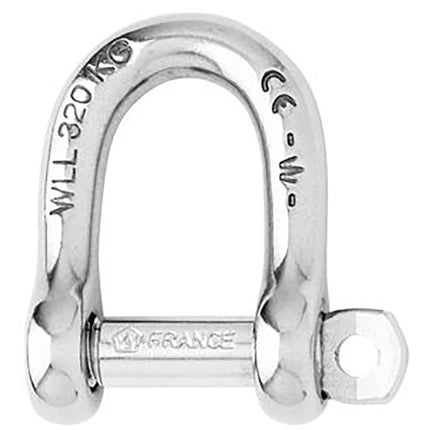

Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16" [01207]

Description

Not Self-Locking D Shackle - 14mm Diameter - 9/16"

Features:

  • D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking
  • Part #01207 is not a self-locking D shackle

Applications:

  • Standard applications of the shackle
  • Attachment applications: blocks, head

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • WLL: (lb) 3520 / (kg) 1600
  • Breaking load: (lb) 17630 / (kg) 8000
  • Weight: (lb) 0.688 / (g) 312

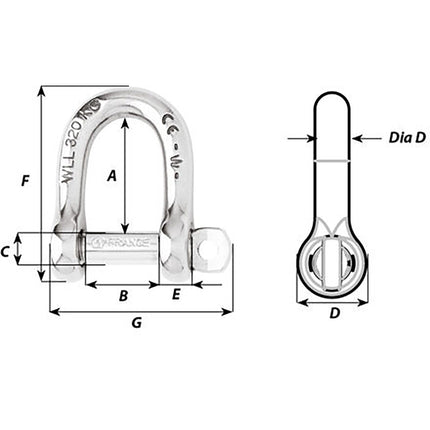

Dimensions:

  • A: (inch) 1 27/32" / (mm) 47
  • B: (inch) 1 7/64" / (mm) 28
  • C: (inch) 35/64" / (mm) 14
  • D: (inch) 1 7/64" / (mm) 28
  • D diameter: (inch) 35/64" / (mm) 14
  • E: (inch) 33/64" / (mm) 13
  • F: (inch) 3 15/64" / (mm) 82
  • G: (inch) 3 5/64" / (mm) 78

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
