Wichard Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32" [01306]

Description

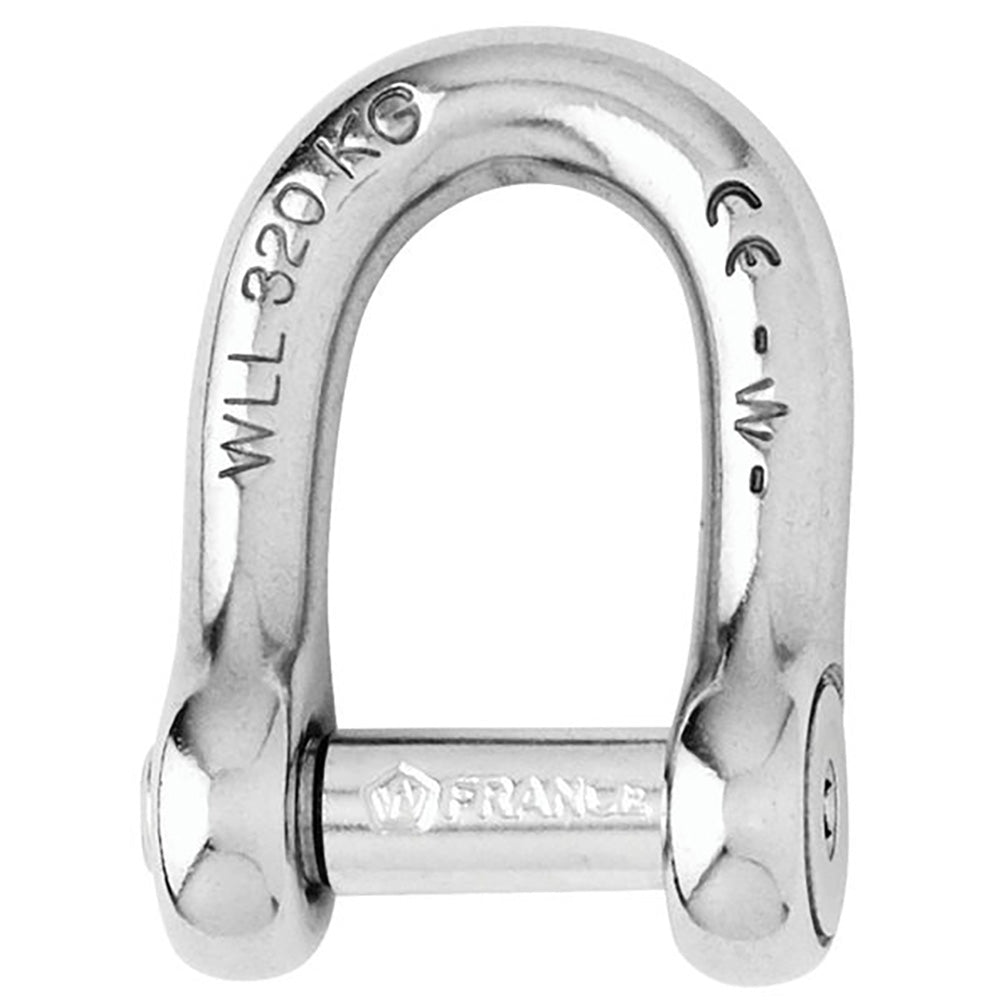

Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32"

Features:

  • Self-locking shackle with allen head pin D forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Ideal to link chains and anchor
  • On the halyard, avoids damaging the sails
  • To be used when the clutter is reduced

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 4580 / (kg) 2080
  • WLL: (lb) 2640 / (kg) 1200
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.412 / (g) 187

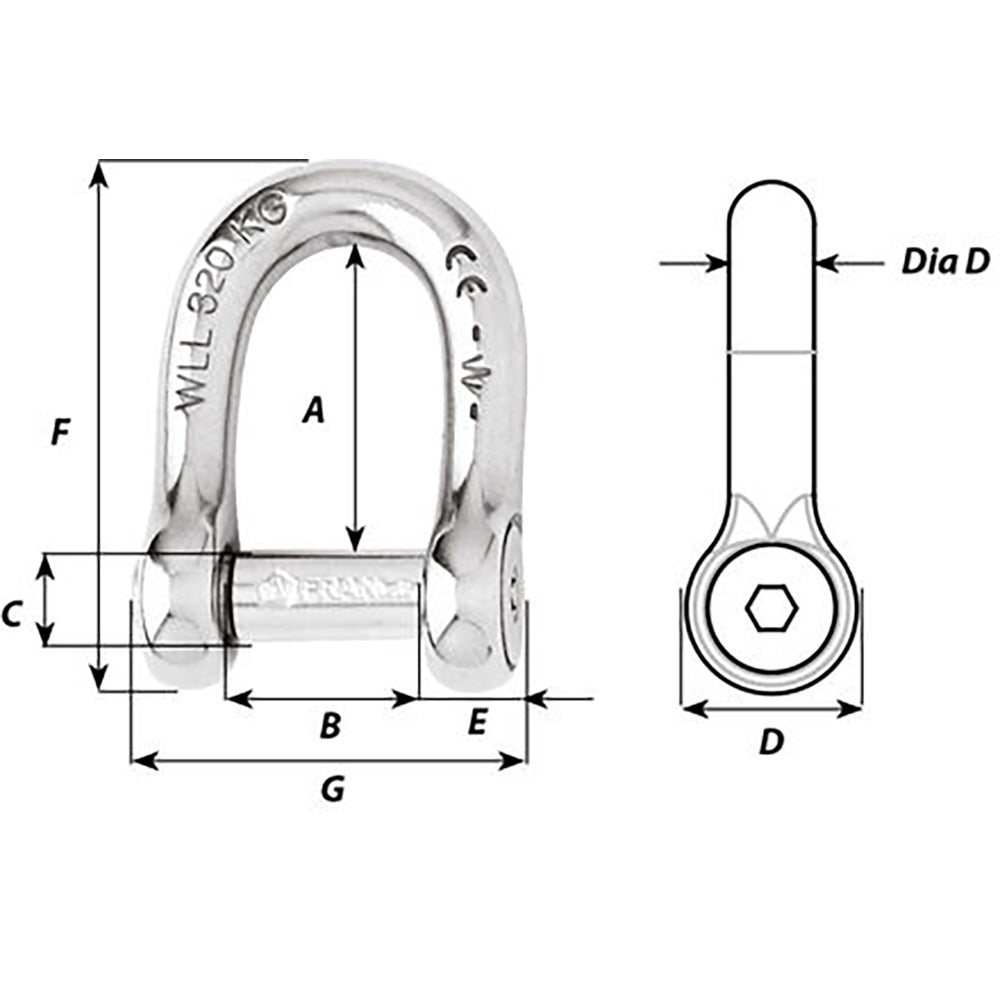

Dimensions:

  • A: (inch) 1 17/32" / (mm) 39
  • B: (inch) 15/16" / (mm) 24
  • C: (inch) 15/32" / (mm) 12
  • D: (inch) 15/16" / (mm) 24
  • D diameter: (inch) 15/32" / (mm) 12
  • E: (inch) 25/64" / (mm) 10
  • F: (inch) 2 7/8" / (mm) 73
  • G: (inch) 1 59/64" / (mm) 49

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
