Wichard Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4" [01303]

Description

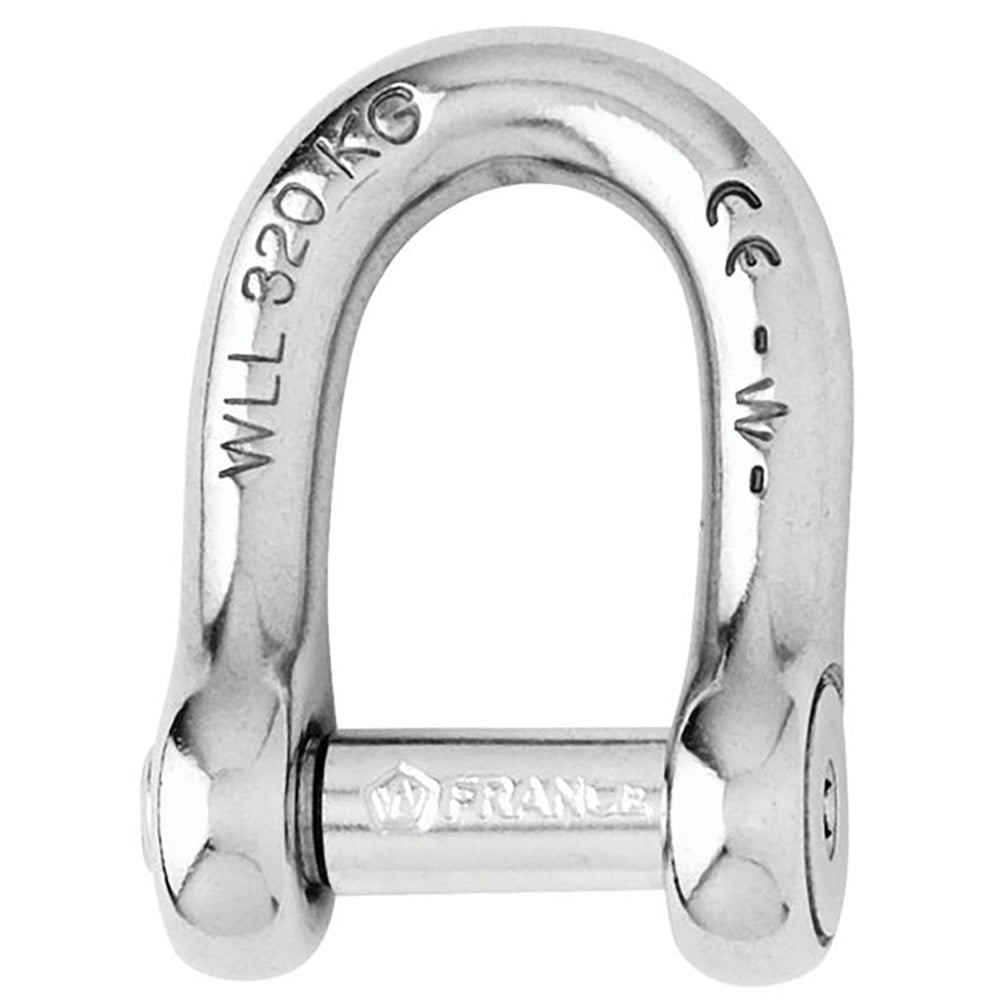

Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"

Features:

  • Self-locking shackle with allen head pin D forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Ideal to link chains and anchor
  • On the halyard, avoids damaging the sails
  • To be used when the clutter is reduced

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 1320 / (kg) 600
  • WLL: (lb) 700 / (kg) 320
  • Breaking load: (lb) 3520 / (kg) 1600
  • Weight: (lb) 0.049 / (g) 22

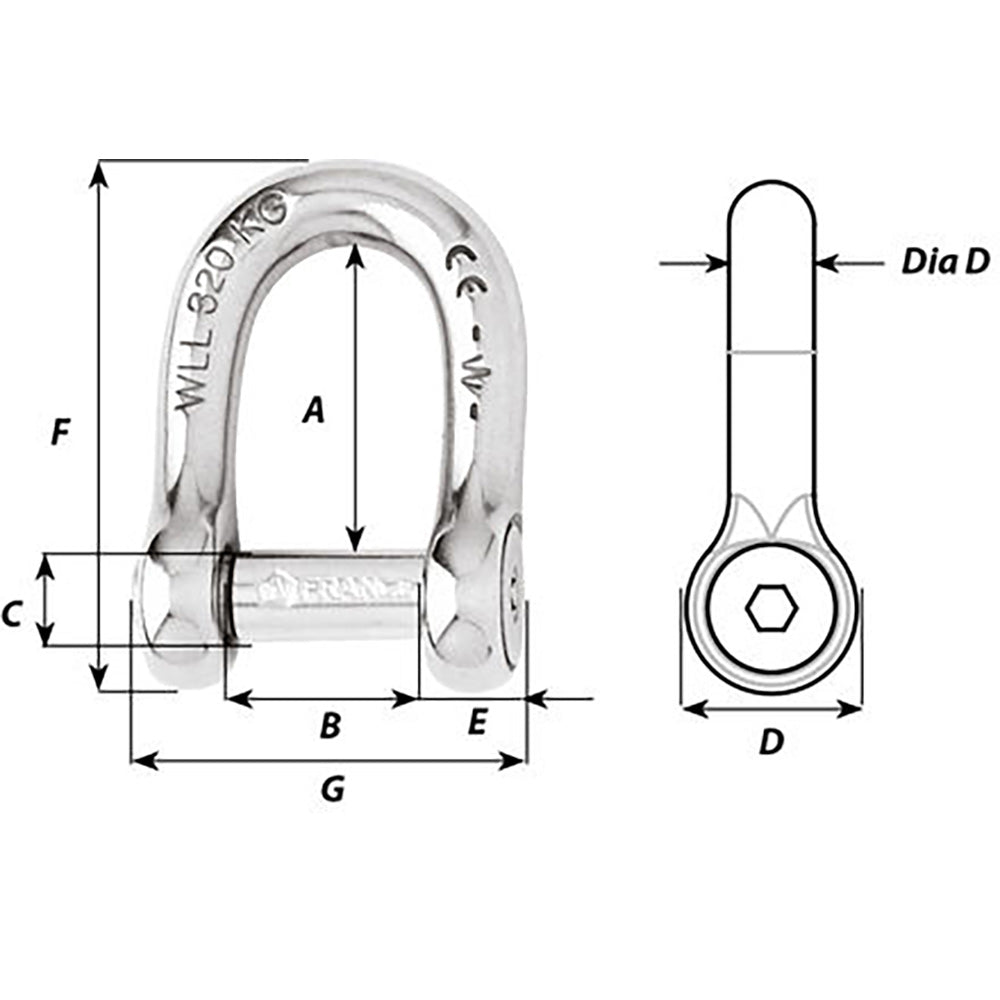

Dimensions:

  • A: (inch) 3/4" / (mm) 19
  • B: (inch) 15/32" / (mm) 12
  • C: (inch) 15/64" / (mm) 6
  • D: (inch) 15/32" / (mm) 12
  • D diameter: (inch) 15/64" / (mm) 6

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)

Wichard Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4" [01303]

Product form

$34.15 $29.03

    Description

    Self-Locking Allen Head Pin D Shackle - 6mm Diameter - 1/4"

    Features:

    • Self-locking shackle with allen head pin D forged in grade 316L stainless steel
    • The pin is locked into one of the indentations
    • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
    • No risks of loosening due to vibrations
    • Outstanding working and breaking loads
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking

    Applications:

    • Ideal to link chains and anchor
    • On the halyard, avoids damaging the sails
    • To be used when the clutter is reduced

    Specifications:

    • Materials: 316 stainless steel grade
    • Working load: (lb) 1320 / (kg) 600
    • WLL: (lb) 700 / (kg) 320
    • Breaking load: (lb) 3520 / (kg) 1600
    • Weight: (lb) 0.049 / (g) 22

    Dimensions:

    • A: (inch) 3/4" / (mm) 19
    • B: (inch) 15/32" / (mm) 12
    • C: (inch) 15/64" / (mm) 6
    • D: (inch) 15/32" / (mm) 12
    • D diameter: (inch) 15/64" / (mm) 6

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
      WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
