Description
Self-Locking Bow Shackle - Diameter 12mm - 15/32"
Features:
- Self-locking bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 4580
- WLL (lb) 2640
- Breaking load (lb) 13220
- Weight (lb) 0.514
Dimensions (see 2nd image):
- A (inch) 2-11/64"
- B (inch) 15/16"
- C (inch) 15/32"
- D (inch) 15/16"
- D diameter (inch) 15/32"
- E (inch) 25/64"
- M (inch) 2-31/64"

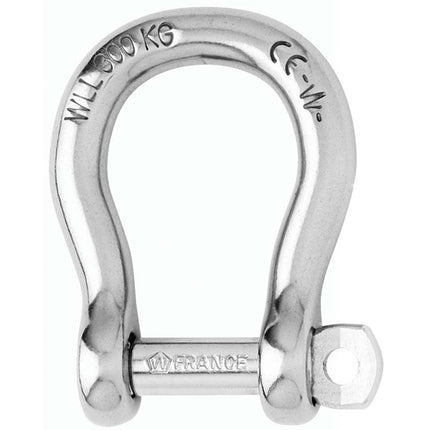

![Wichard Self-Locking Bow Shackle - Diameter 12mm - 15/32" [01246]](http://rebellionmarine.com/cdn/shop/products/93107XL.jpg?v=1656238030)
![Wichard Self-Locking Bow Shackle - Diameter 12mm - 15/32" [01246]](http://rebellionmarine.com/cdn/shop/products/93107BXL.jpg?v=1656238032)
