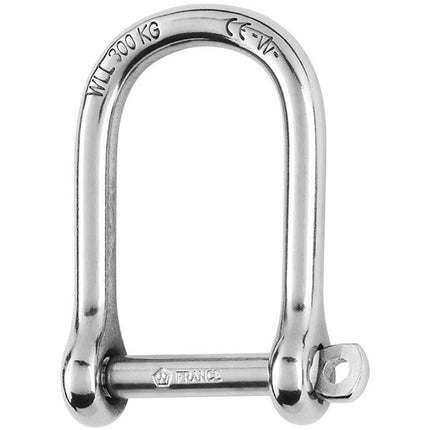

Wichard Self-Locking Large Opening Shackle - 6mm Diameter - 1/4" [01263]

Description

Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"

Features:

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • For applications where a large opening shackle is required

Specifications:

  • Materials 316 stainless steel grade
  • Working load: (lb) 990 / (kg) 450
  • WLL: (lb) 660 / (kg) 300
  • Breaking load: (lb) 3300 / (kg) 1500
  • Weight: (lb) 0.06 / (g) 27

Dimensions:

  • A: (inch) 1 21/32" / (mm) 42
  • B: (inch) 1 / (mm) 25.5
  • C: (inch) 15/64" / (mm) 6
  • D: (inch) 35/64" / (mm) 14
  • D diameter: (inch) 15/64" / (mm) 6
  • E: (inch) 15/64" / (mm) 6
  • F: (inch) 2 9/32" / (mm) 58
  • G: (inch) 1 47/64" / (mm) 44

Caption:

  • Working Load (WL): For nautical applications
  •  Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
