Wichard Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16" [01394]

Description

Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16"

Features:

  • Thimble shackle with allen head pin forged in grade 316L stainless steel
  • Allows to spliced a rope without adding and additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 12 mm

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 2200 / (kg) 1000
  • Breaking load: (lb) 6610 / (kg) 3000
  • Weight: (lb) 0.168 / (g) 76

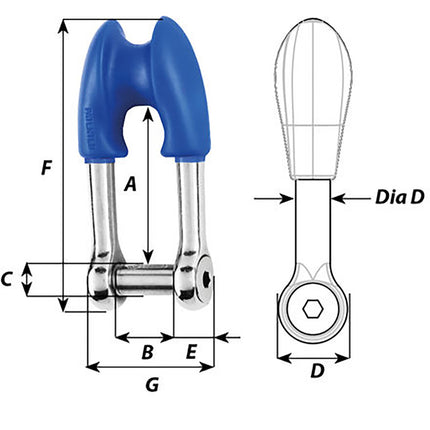

Dimensions:

  • A: (inch) 1 39/64" / (mm) 41
  • B: (inch) 5/8" / (mm) 16
  • C: (inch) 5/16" / (mm) 8
  • D: (inch) 5/8" / (mm) 16
  • D diameter: (inch) 5/16" / (mm) 8
  • E: (inch) 9/32" / (mm) 7
  • F: (inch) 2 63/64" / (mm) 76
  • G: (inch) 1 19/64" / (mm) 33

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
